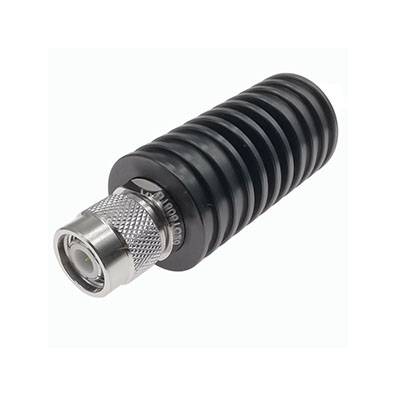

Generic photo used for illustration purposes only.
TNC Male Termination DC-6 GHz 20 Watts
P/N:RFT0620T2
RFT0620T2 from RF ONE is TNC male termination load operating DC to 6 GHz and rated for 20 watts. RoHS Compliant.
Average Power:
20 W
Frequency Max:
6 GHz
Connector:
TNC
Gender:
Male
VSWR Max:
1.25
Shape:
Round
Dimension (mm):
49.5(L)*38(φ)
Datasheet
Add to RFQ
