40 GHz Thermal Vacuum Phase Stable Low Loss Cable
40 GHz Thermal Vacuum Phase Stable Low Loss Cable 40 GHz Thermal Vacuum Phase Stable Low Loss Cable 40 GHz Thermal Vacuum Phase Stable Low Loss Cable
  • 40 GHz Thermal Vacuum Phase Stable Low Loss Cable

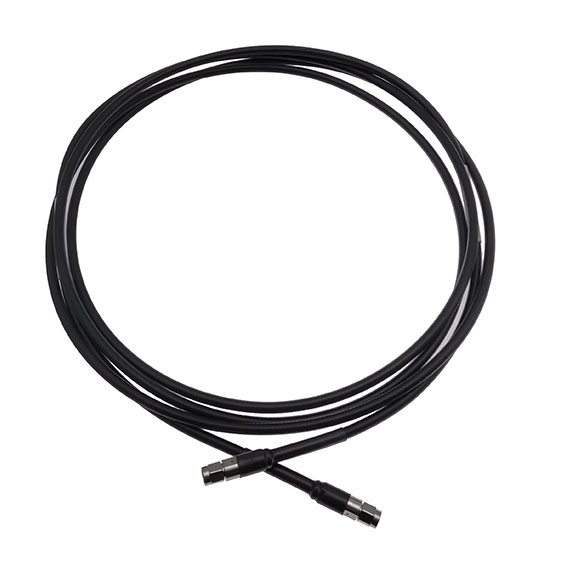

Generic photo used for illustration purposes only.

40 GHz Thermal Vacuum Phase Stable Low Loss Cable

P/N:TVAC-PL380P
  • Frequency Max:40 GHz
  • Outer Diameter:3.8 mm
  • Static Bend Radius:19 mm
  • Loss at Max Freq:2.20 dB/m
  • Power at Max Freq:74 W
  • Phase Stability:≤±5°@ 40 GHz

    • Datasheet

    Add to RFQ
    Description
    • Ultra low loss, 2.2dB/meter to 40 GHz
    • Excellent phase stability with temp & flexure
    • Extended temperature range -55～165 oC
    • Low outgassing materials:TML<1%,CVCM<0.1%
    • Vented connectors to allow rapid pressurization test
    • Thermally conditioned for reliability over temp extremes
