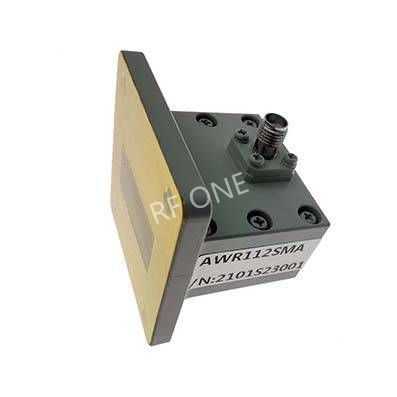

Generic photo used for illustration purposes only.
WR112 to SMA Female Waveguide to Coax Adapter, 6.57-9.9 GHz, Right Angle, UBR84 Flange
P/N:AWR112SMA
AWR112SMA from RF ONE is a WR-112 waveguide to SMA female right angle adapter that covers the frequency range of 6.57 to 9.9 GHz with UBR84 flange.
Waveguide Size:
WR112
Coaxial Connnector:
SMA
Gender:
Female
Frequency Range:
6.57-9.9 GHz
VSWR Max:
1.2
Flange Type:
UBR84
Body Style:
Right Angle
Datasheet
Add to RFQ
