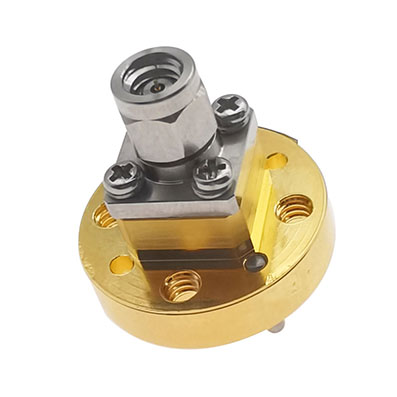

Generic photo used for illustration purposes only.
WR15 to 1.0mm Male Waveguide to Coax Adapter, 49.8-75.8GHz, UG385/U Flange, End Launch
P/N:AWR151EM
AWR151EM from RF ONE is a WR-15 waveguide to 1.0mm male end launch adapter that covers the frequency range of 49.8 to 75.8 GHz with UG385/U flange.
Waveguide Size:
WR15
Coaxial Connnector:
1.0mm
Gender:
Male
Frequency Range:
49.8-75.8 GHz
VSWR Max:
1.4
Flange Type:
UG385/U
Body Style:
End Launch
Datasheet
Add to RFQ
