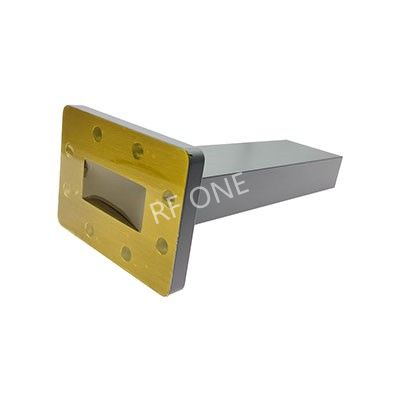

Generic photo used for illustration purposes only.

WR187 Waveguide Termination 3.94-5.99 GHz 8 W UDR48 Flange

P/N:WT187A
  • Series:Low Power Low VSWR
  • Waveguide Size:WR187
  • Frequency Range:3.94-5.99 GHz
  • Average Power:8 W
  • VSWR Max:1.03
  • Flange Type:UDR48
  • Description
    WT187A from RF ONE is a WR-187 waveguide termination load that covers the frequency range of 3.94 to 5.99 GHz and rated for 8 watts. It is low power low VSWR design which is used to prevent RF signals from reflecting back from open-ended or unused waveguide ports.
