Generic photo used for illustration purposes only.

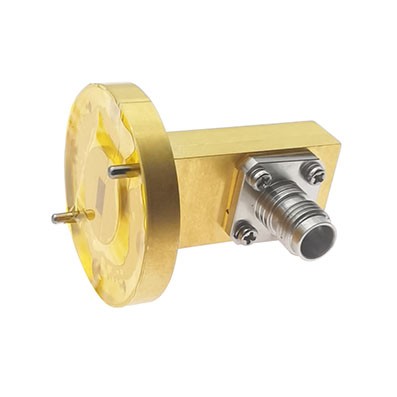

WR19 to 1.85mm Female Waveguide to Coax Adapter, 39.2-59.6 GHz, Right Angle, UG-383/U Mod Flange
P/N:AWR19185
AWR19185 from RF ONE is a WR-19 waveguide to 1.85mm female right angle adapter that covers the frequency range of 39.2 to 59.6 GHz with UG-383/U Modified flange.
Waveguide Size:
WR19
Coaxial Connnector:
1.85mm
Gender:
Female
Frequency Range:
39.2-59.6 GHz
VSWR Max:
1.35
Flange Type:
UG-383/U Mod
Body Style:
Right Angle
Datasheet
Add to RFQ
