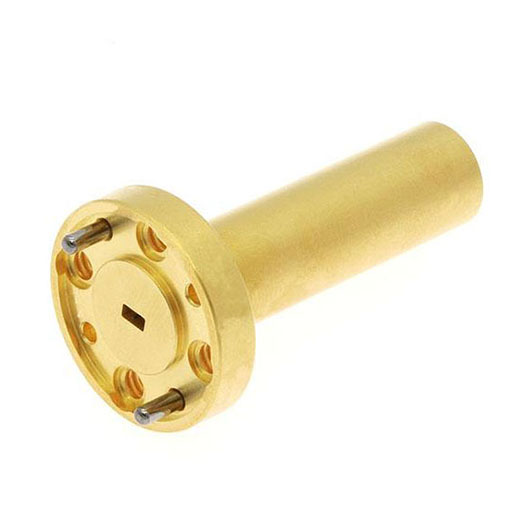

WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange
WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange
  • WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange
Generic photo used for illustration purposes only.

WR22 Waveguide Termination 32.9-50.1 GHz 5W UG383/U Flange

P/N:WT22A5
  • Series:Medium and High Power
  • Waveguide Size:WR22
  • Frequency Range:32.9-50.1 GHz
  • Average Power:5 W
  • VSWR Max:1.15
  • Flange Type:UG383/U

    • Datasheet

    Add to RFQ
