WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange
WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange

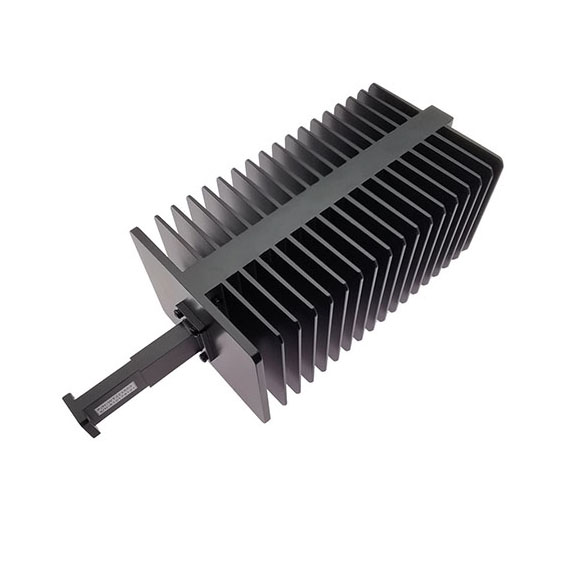

  • WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange
Generic photo used for illustration purposes only.

WR22 Waveguide Termination 32.9-50.1 GHz 500W UG599/U Flange

P/N:WT22S500
  • Series:Medium and High Power
  • Waveguide Size:WR22
  • Frequency Range:32.9-50.1 GHz
  • Average Power:500 W
  • VSWR Max:1.2
  • Flange Type:UG599/U

    • Datasheet

    Add to RFQ
