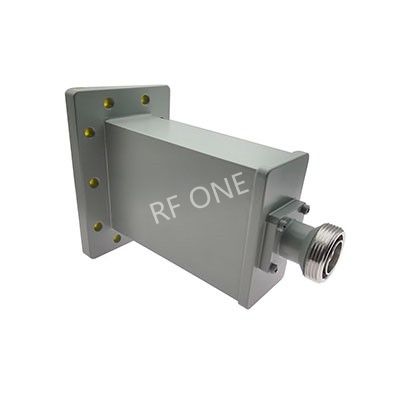

Generic photo used for illustration purposes only.
WR284 to 7/16 DIN Female Waveguide to Coax Adapter, 2.6-3.95 GHz, End Launch, UDR32 Flange
P/N:AWR284DEL
AWR284DEL from RF ONE is a WR-284 waveguide to 7/16 DIN female end launch adapter that covers the frequency range of 2.6 to 3.95 GHz with UDR32 flange.
Waveguide Size:
WR284
Coaxial Connnector:
7/16 DIN
Gender:
Female
Frequency Range:
2.6-3.95 GHz
VSWR Max:
1.2
Flange Type:
UDR32
Body Style:
End Launch
Datasheet
Add to RFQ
