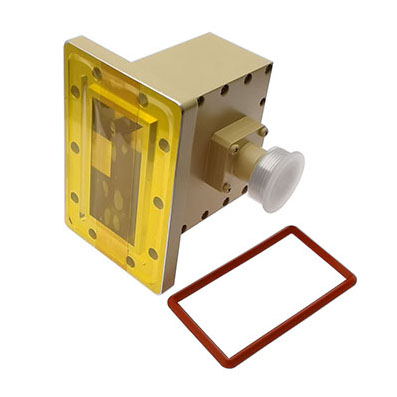

Generic photo used for illustration purposes only.
WR284 to 7/16 DIN Female Waveguide to Coax Adapter, 2.6-3.95 GHz, Right Angle, PDR32 Flange
P/N:AWR284DG
AWR284DG from RF ONE is a WR-284 waveguide to 7/16 DIN female Right Angle adapter that covers the frequency range of 2.6 to 3.95 GHz with PDR32 flange.
Waveguide Size:
WR284
Coaxial Connnector:
7/16 DIN
Gender:
Female
Frequency Range:
2.6-3.95 GHz
VSWR Max:
1.2
Flange Type:
PDR32
Body Style:
Right Angle
Datasheet
Add to RFQ
