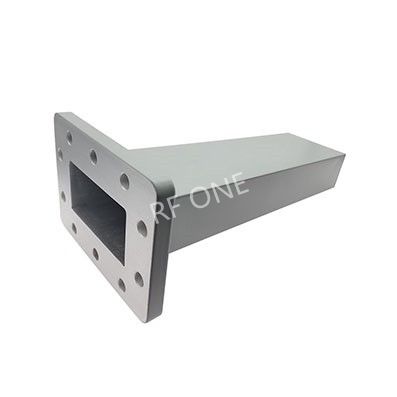

Generic photo used for illustration purposes only.

WR284 Waveguide Termination 2.60-3.95 GHz 10 W UDR32 Flange

P/N:WT284A
  • Series:Low Power Low VSWR
  • Waveguide Size:WR284
  • Frequency Range:2.60-3.95 GHz
  • Average Power:10 W
  • VSWR Max:1.03
  • Flange Type:UDR32
  • Description
    WT284A from RF ONE is a WR-284 waveguide termination load that covers the frequency range of 2.60 to 3.95 GHz and rated for 10 watts. It is low power low VSWR design which is used to prevent RF signals from reflecting back from open-ended or unused waveguide ports.
