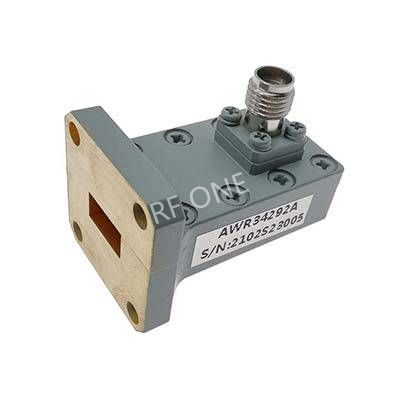

Generic photo used for illustration purposes only.
WR34 to 2.92mm Female Waveguide to Coax Adapter, 21.7-33 GHz, Right Angle, UG1530/U Flange
P/N:AWR34292A
AWR34292A from RF ONE is a WR-34 waveguide to 2.92mm female right angle adapter that covers the frequency range of 21.7 to 33 GHz with UG1530/U flange.
Waveguide Size:
WR34
Coaxial Connnector:
2.92mm
Gender:
Female
Frequency Range:
21.7-33 GHz
VSWR Max:
1.2
Flange Type:
UG1530/U
Body Style:
Right Angle
Datasheet
Add to RFQ
