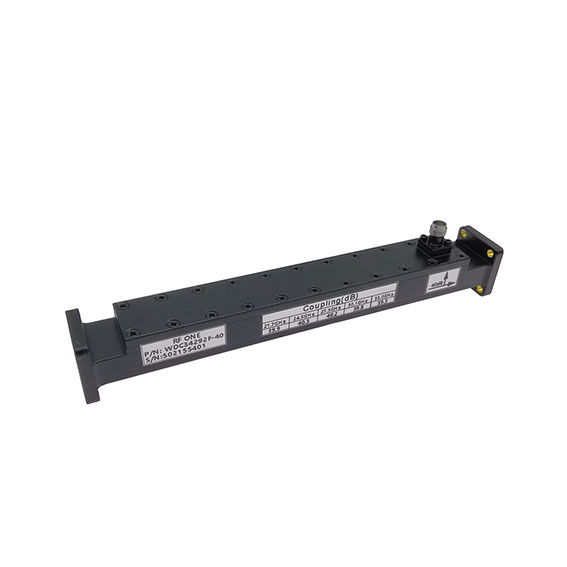

Generic photo used for illustration purposes only.

WR34 Waveguide Broadwall Coupler, 40 dB, 21.7-33 GHz, 2.92mm Coupled Port

P/N:WDC34292F-40
  • Series:Broadwall
  • Waveguide Size:WR34
  • Frequency Range:21.7-33.0 GHz
  • Coupling Port:2.92mm Female
  • Coupling:40 dB
  • Directivity Min:25 dB
  • Description
    WDC34292F-40 from RF ONE is a 40 dB WR34 three port broadwall directional coupler with 2.92mm female coupled port. This waveguide Broadwall directional coupler has a 40 dB nominal coupling level and 25 dB min directivity across the full waveguide band from 21.7 to 33 GHz, ideal for RF signal sampling / monitoring.

    Further customization is available upon request.
