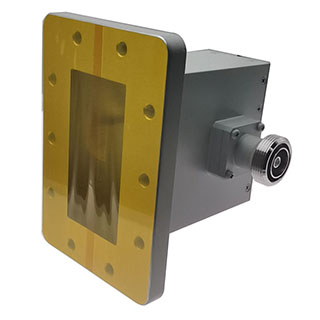

Generic photo used for illustration purposes only.

WR340 to 7/16 DIN Female Waveguide to Coax Adapter, 2.17-3.3 GHz, Right Angle, UDR26 Flange

P/N:AWR340D
AWR340D from RF ONE is a WR-340 waveguide to 7/16 DIN female right angle adapter that covers the frequency range of 2.17 to 3.3 GHz with UDR26 flange.
  • Waveguide Size:WR340
  • Coaxial Connnector:7/16 DIN
  • Gender:Female
  • Frequency Range:2.17-3.3 GHz
  • VSWR Max:1.2
  • Flange Type:UDR26
  • Body Style:Right Angle
