Hot

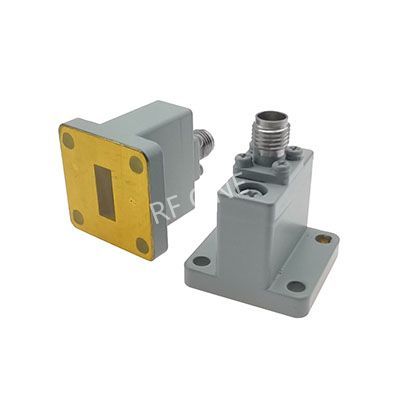

Generic photo used for illustration purposes only.
WR42 to 2.92mm Female Waveguide to Coax Adapter, 17.6-26.7 GHz, End Launch, UBR220 Flange
P/N:AWR42292EL
AWR42292EL from RF ONE is a WR-42 waveguide to 2.92mm female end launch adapter that covers the frequency range of 17.6 to 26.7 GHz with UBR220 flange.
Waveguide Size:
WR42
Coaxial Connnector:
2.92mm
Gender:
Female
Frequency Range:
17.6-26.7 GHz
VSWR Max:
1.2
Flange Type:
UBR220
Body Style:
End Launch
Datasheet
Add to RFQ
