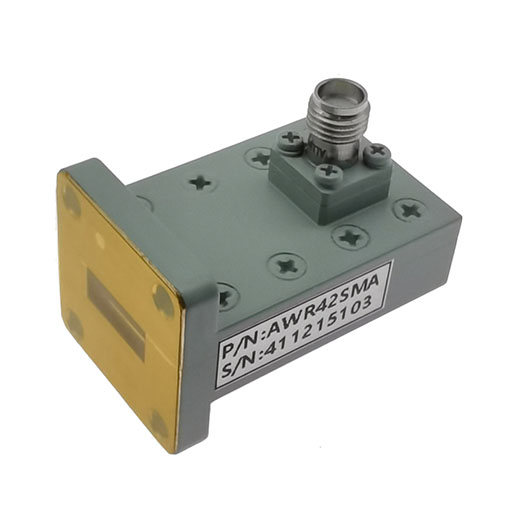

Generic photo used for illustration purposes only.
WR42 to SMA Female Waveguide to Coax Adapter, 17.6-26.7 GHz, Right Angle, UBR220 Flange
P/N:AWR42SMA
AWR42SMA from RF ONE is a WR-42 waveguide to SMA female right angle adapter that covers the frequency range of 17.6 to 26.7 GHz with UBR220 flange.
Waveguide Size:
WR42
Coaxial Connnector:
SMA
Gender:
Female
Frequency Range:
17.6-26.7 GHz
VSWR Max:
1.2
Flange Type:
UBR220
Body Style:
Right Angle
Datasheet
Add to RFQ
