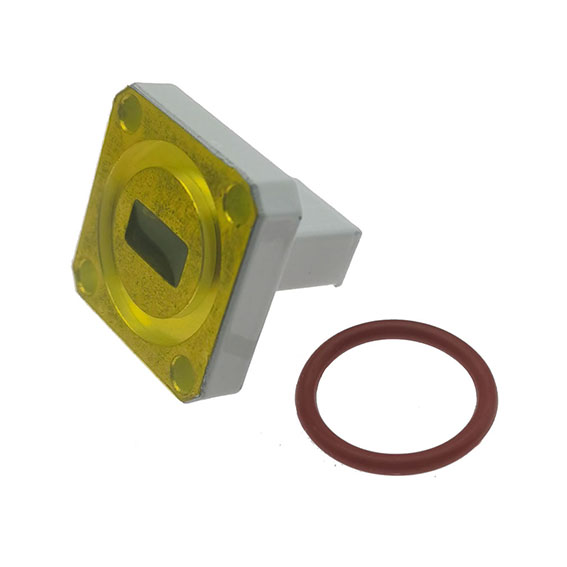

WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange
WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange
  • WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange
Generic photo used for illustration purposes only.

WR42 Waveguide Termination 17.6-26.7 GHz 15W PBR220 Flange

P/N:WT42SG
  • Series:Low Power Small Size
  • Waveguide Size:WR42
  • Frequency Range:17.6-26.7 GHz
  • Average Power:15 W
  • VSWR Max:1.2
  • Flange Type:PBR220

    • Datasheet

    Add to RFQ
