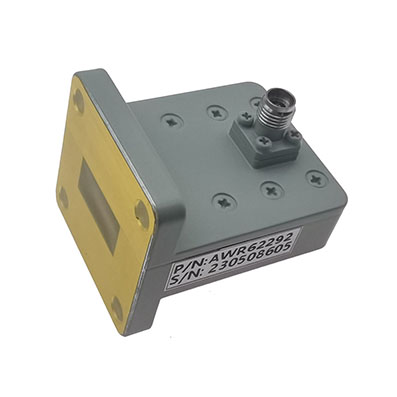

Generic photo used for illustration purposes only.
WR62 to 2.92mm Female Waveguide to Coax Adapter, 11.9-18 GHz, Right Angle, UBR140 Flange
P/N:AWR62292
AWR62292 from RF ONE is a WR-62 waveguide to 2.92mm female right angle adapter that covers the frequency range of 11.9 to 18 GHz with UBR140 flange.
Waveguide Size:
WR62
Coaxial Connnector:
2.92mm
Gender:
Female
Frequency Range:
11.9-18 GHz
VSWR Max:
1.2
Flange Type:
UBR140
Body Style:
Right Angle
Datasheet
Add to RFQ
