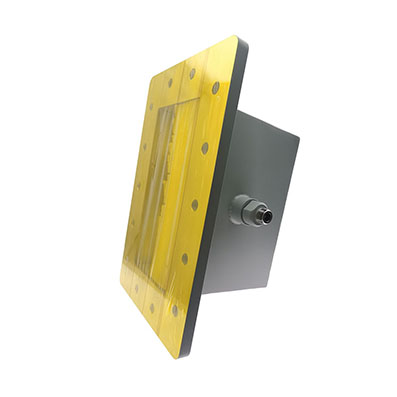

Generic photo used for illustration purposes only.
WR770 to N Female Waveguide to Coax Adapter, 0.96-1.46 GHz, Right Angle, UDR12 Flange
P/N:AWR770N
AWR770N from RF ONE is a WR-770 waveguide to N female right angle adapter that covers the frequency range of 0.96 to 1.46 GHz with UDR12 flange.
Waveguide Size:
WR770
Coaxial Connnector:
N
Gender:
Female
Frequency Range:
0.96-1.46 GHz
VSWR Max:
1.2
Flange Type:
UDR12
Body Style:
Right Angle
Datasheet
Add to RFQ
