WR90 to N Female Waveguide to Coax Adapter, 8.2-12.5GHz, CPR90F Flange, Right Angle

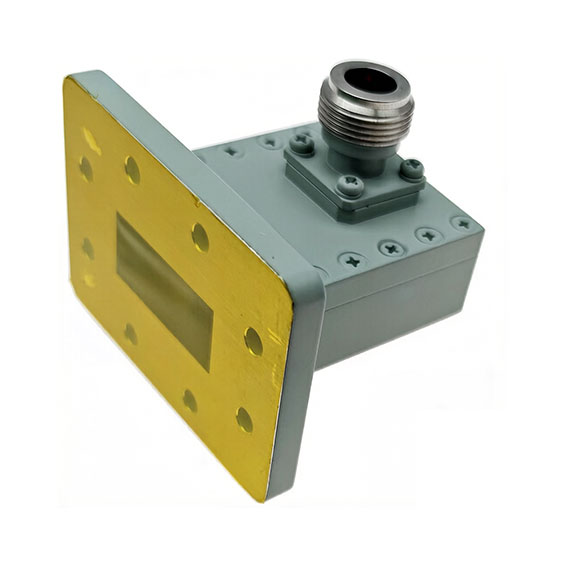

Generic photo used for illustration purposes only.

WR90 to N Female Waveguide to Coax Adapter, 8.2-12.5GHz, CPR90F Flange, Right Angle

Name: WR90 to N Female Waveguide to Coax Adapter, 8.2-12.5GHz, CPR90F Flange, Right Angle
Brand: RF ONE Electronics
SKU: AWR90NC

P/N:AWR90NC

AWR90NC from RF ONE is a WR-90 waveguide to N female right angle adapter that covers the frequency range of 8.2 to 12.5 GHz with CPR90F flange.

Waveguide Size:WR90

Coaxial Connnector:N

Gender:Female

Frequency Range:8.2-12.5 GHz

VSWR Max:1.2

Flange Type:CPR90F

Body Style:Right Angle

Datasheet

Add to RFQ
