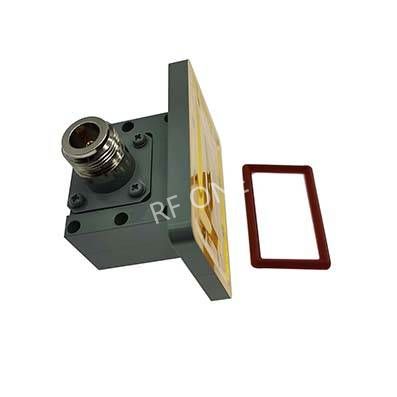

Generic photo used for illustration purposes only.
WR90 to N Female Waveguide to Coax Adapter, 8.2-12.5 GHz, Right Angle, PDR100 Flange
P/N:AWR90NG
AWR90NG from RF ONE is a WR-90 waveguide to N female right angle adapter that covers the frequency range of 8.2 to 12.5 GHz with PDR100 flange.
Waveguide Size:
WR90
Coaxial Connnector:
N
Gender:
Female
Frequency Range:
8.2-12.5 GHz
VSWR Max:
1.2
Flange Type:
PDR100
Body Style:
Right Angle
Datasheet
Add to RFQ
