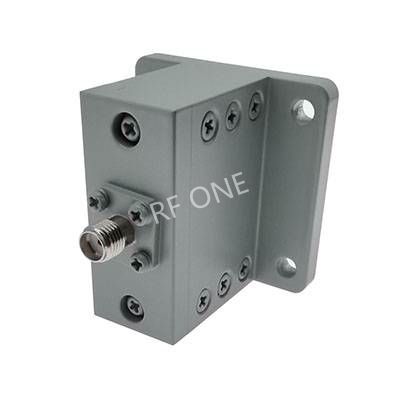

Generic photo used for illustration purposes only.

WR90 to SMA Female Waveguide to Coax Adapter, 8.2-12.4 GHz, End Launch, UBR100 Flange

P/N:AWR90SMAEL
AWR90SMAEL from RF ONE is a WR-90 waveguide to SMA female end launch adapter that covers the frequency range of 8.2 to 12.4 GHz with UBR100 flange.
  • Waveguide Size:WR90
  • Coaxial Connnector:SMA
  • Gender:Female
  • Frequency Range:8.2-12.4 GHz
  • VSWR Max:1.2
  • Flange Type:UBR100
  • Body Style:End Launch
