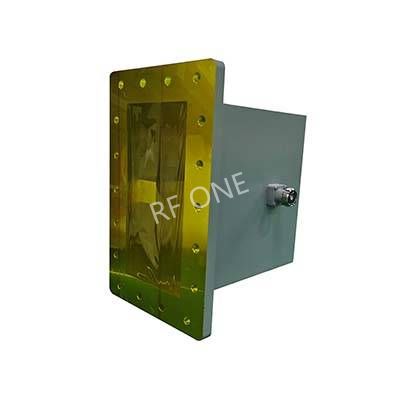

Generic photo used for illustration purposes only.
WR975 to 7/16 DIN Female Waveguide to Coax Adapter, 0.76-1.15 GHz, Right Angle, UDR9 Flange
P/N:AWR975D
AWR975D from RF ONE is a WR-975 waveguide to 7/16 DIN female right angle adapter that covers the frequency range of 0.76 to 1.15 GHz with UDR9 flange.
Waveguide Size:
WR975
Coaxial Connnector:
7/16 DIN
Gender:
Female
Frequency Range:
0.76-1.15 GHz
VSWR Max:
1.25
Flange Type:
UDR9
Body Style:
Right Angle
Datasheet
Add to RFQ
