WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts
WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts
  • WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts

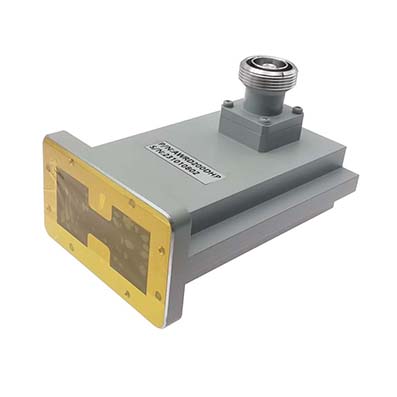

Generic photo used for illustration purposes only.

WRD200 to 7/16 DIN Female Double Ridge Waveguide to Coax Adapter, 2-4.8 GHz, Right Angle, 2000 Watts

P/N:AWRD200DHP
AWRD200DHP from RF ONE is a WRD-200 waveguide to 7/16 DIN female right angle adapter that covers the frequency range of 2 to 4.8 GHz with FPWRD200 flange. These high power right angle adapters are configured with custom airline DIN 7/16 female connectors,  with CW power up to 2 kW.
  • Waveguide Size:WRD200
  • Coaxial Connnector:7/16 DIN
  • Gender:Female
  • Frequency Range:2-4.8 GHz
  • VSWR Max:1.25
  • Flange Type:FPWRD200
  • Body Style:Right Angle

    • Datasheet
