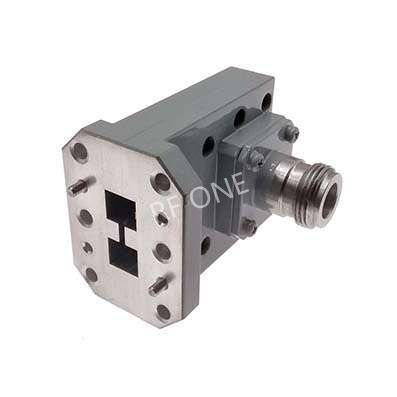

Generic photo used for illustration purposes only.
WRD500 to N Female Double Ridge Waveguide to Coax Adapter, 5-18 GHz, Right Angle
P/N:AWRD500N
AWRD500N from RF ONE is a WRD-500 waveguide to N female right angle adapter that covers the frequency range of 5 to 18 GHz with FPWRD500 flange.
Waveguide Size:
WRD500
Coaxial Connnector:
N
Gender:
Female
Frequency Range:
5-18 GHz
VSWR Max:
1.3
Flange Type:
FPWRD500
Body Style:
Right Angle
Datasheet
Add to RFQ
