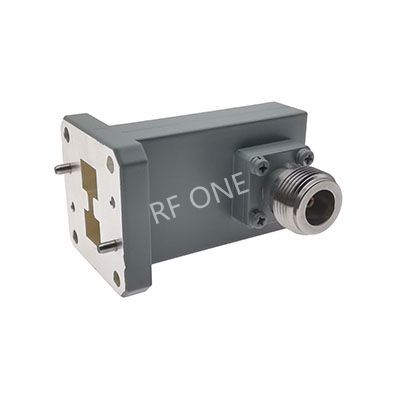

WRD580 to N Female Double Ridge Waveguide to Coax Adapter, 5.8-16 GHz, Right Angle

P/N:AWRD580N
AWRD580N from RF ONE is a WRD-580 waveguide to N female right angle adapter that covers the frequency range of 5.8 to 16 GHz with FPWRD580 flange.
  • Waveguide Size:WRD580
  • Coaxial Connnector:N
  • Gender:Female
  • Frequency Range:5.8-16 GHz
  • VSWR Max:1.3
  • Flange Type:FPWRD580
  • Body Style:Right Angle
