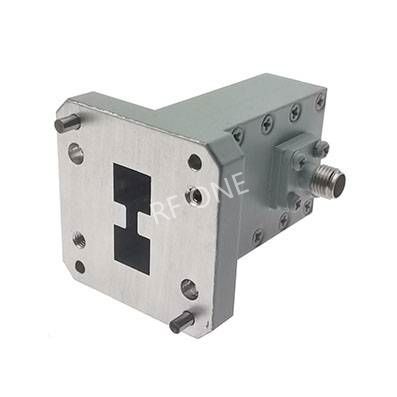

Generic photo used for illustration purposes only.
WRD650 to SMA Female Double Ridge Waveguide to Coax Adapter, 6-18 GHz, Right Angle
P/N:AWRD650S
AWRD650S from RF ONE is a WRD-650 waveguide to SMA female right angle adapter that covers the frequency range of 6 to 18 GHz with FPWRD650 flange.
Waveguide Size:
WRD650
Coaxial Connnector:
SMA
Gender:
Female
Frequency Range:
6-18 GHz
VSWR Max:
1.25
Flange Type:
FPWRD650
Body Style:
Right Angle
Datasheet
Add to RFQ
