RF ONE offers a wide choice of in-and-between series low passive intermodulation (PIM) adapters for applications such as installation in wireless infrastructure, in-building systems, and PIM testing setup. Our low PIM adapters come in various combinations of 2.2-5, 4.1/9.5 Mini DIN, 4.3-10, 7/16 DIN, N, NEX10, QN and SMA etc. RF ONE low PIM adapters are ideal for wireless applications.
| P/N | Connection Type | Connector 1 | Connector 2 | Body Style | Frequency Range | VSWR Max | 3rd PIM Max | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| A0601L | In Series | 7/16 DIN Female | 7/16 DIN Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0602L | In Series | 7/16 DIN Female | 7/16 DIN Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0603L | In Series | 7/16 DIN Male | 7/16 DIN Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0604L | In Series | N Female | N Female | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |
| A0605L | In Series | N Female | N Male | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |
| A0606L | In Series | N Male | N Male | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |
| A0607L | In Series | 4.3-10 Female | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0608L | In Series | 4.3-10 Female | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0609L | In Series | 4.3-10 Male | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0619L | In Series | QN Female | QN Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0620L | In Series | QN Female | QN Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0621L | In Series | QN Male | QN Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0631L | Between Series | 7/16 DIN Female | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0632L | Between Series | 7/16 DIN Female | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0633L | Between Series | 7/16 DIN Male | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0634L | Between Series | 7/16 DIN Male | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0639L | Between Series | 7/16 DIN Female | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0640L | Between Series | 7/16 DIN Female | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0641L | Between Series | 7/16 DIN Male | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0642L | Between Series | 7/16 DIN Male | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

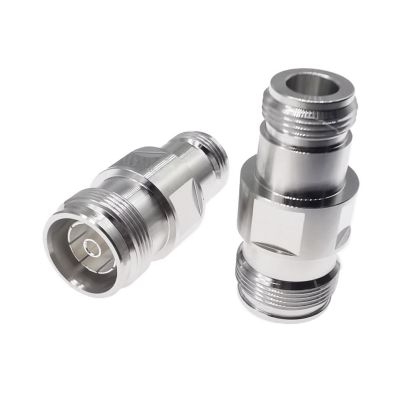

| A0655L | Between Series | 4.3-10 Female | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

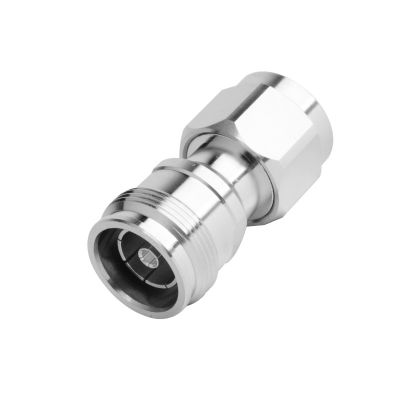

| A0656L | Between Series | 4.3-10 Female | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

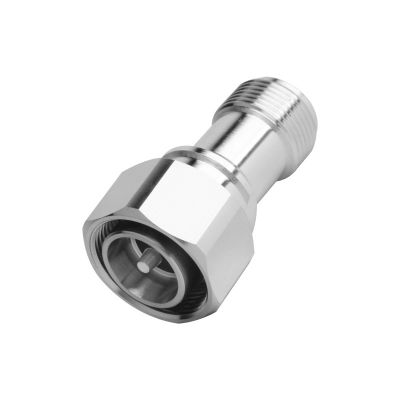

| A0657L | Between Series | 4.3-10 Male | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

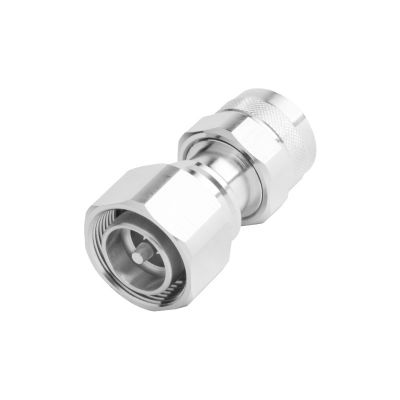

| A0658L | Between Series | 4.3-10 Male | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

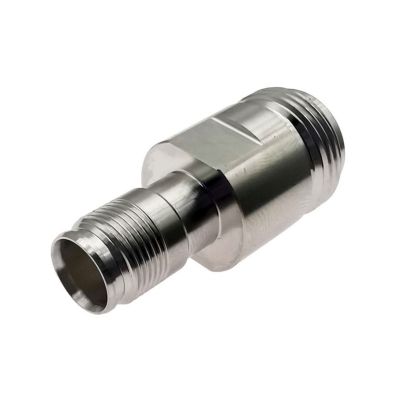

| A0663L | Between Series | N Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

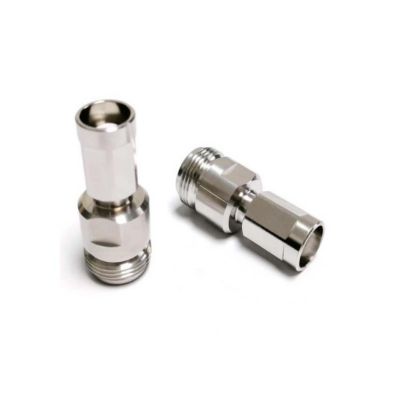

| A0664L | Between Series | N Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

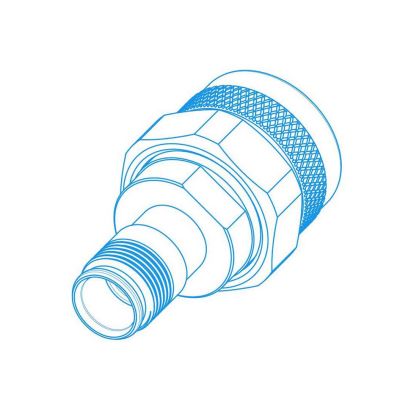

| A0665L | Between Series | N Male | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

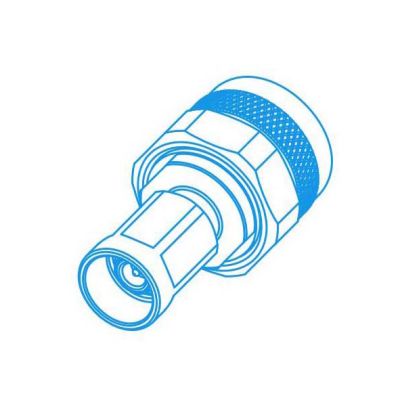

| A0666L | Between Series | N Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

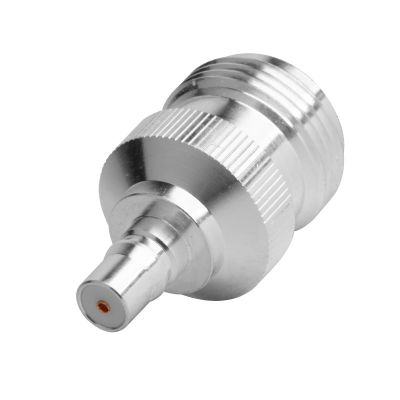

| A0671L | Between Series | N Female | QMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |

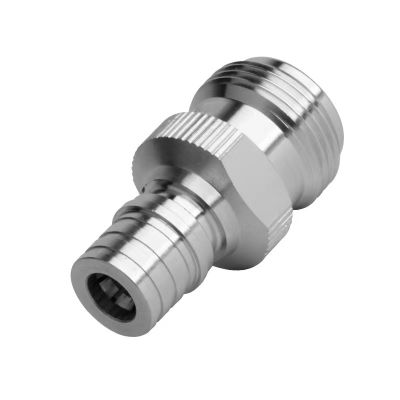

| A0672L | Between Series | N Female | QMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |

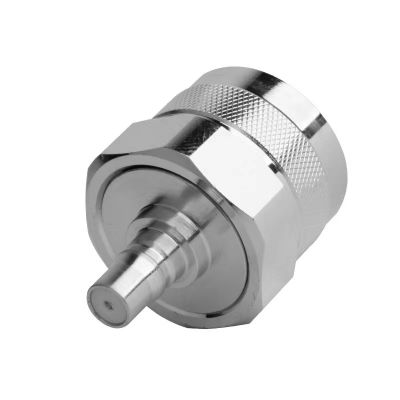

| A0673L | Between Series | N Male | QMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |

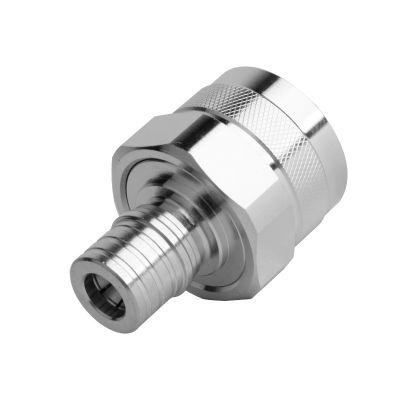

| A0674L | Between Series | N Male | QMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |

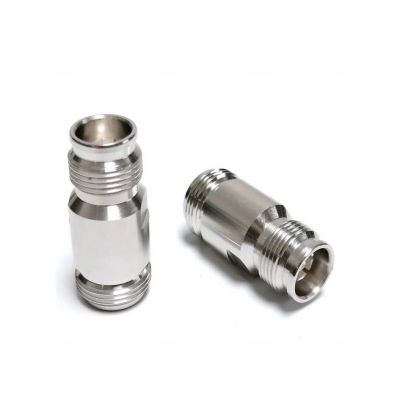

| A0675L | Between Series | N Female | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

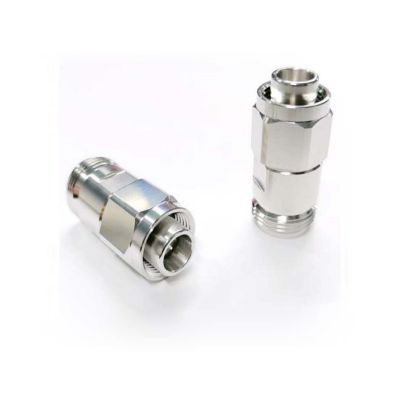

| A0676L | Between Series | N Female | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

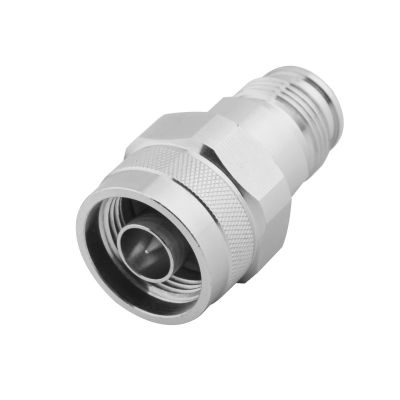

| A0677L | Between Series | N Male | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

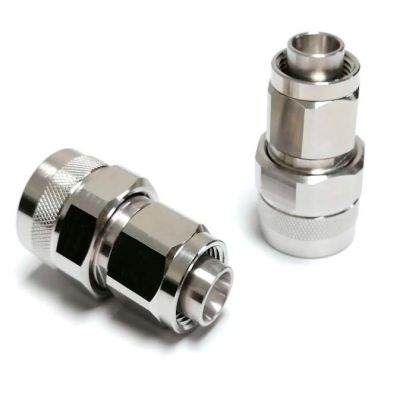

| A0678L | Between Series | N Male | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

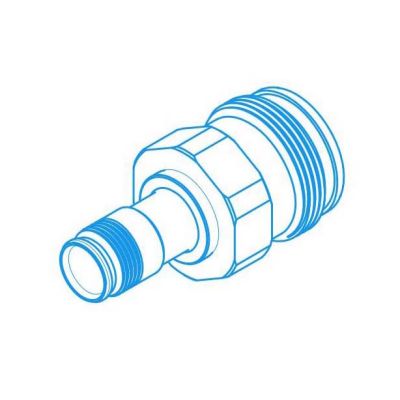

| A0691L | Between Series | 4.3-10 Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

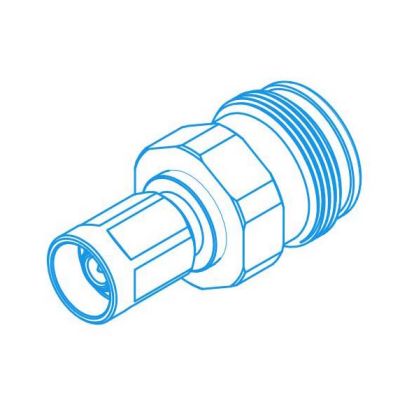

| A0692L | Between Series | 4.3-10 Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

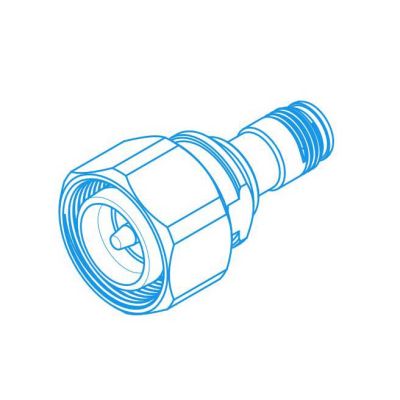

| A0693L | Between Series | 4.3-10 Male | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

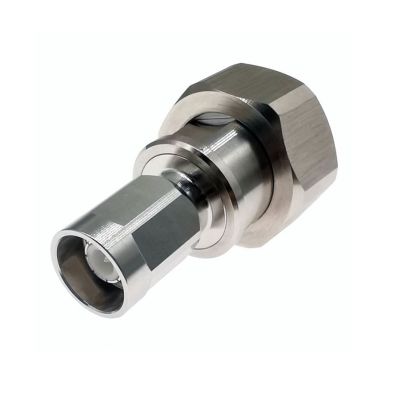

| A0694L | Between Series | 4.3-10 Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0695L | Between Series | SMA Female | QMA Female | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0696L | Between Series | SMA Female | QMA Male | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0697L | Between Series | SMA Male | QMA Female | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0698L | Between Series | SMA Male | QMA Male | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A06101L | Between Series | 4.3-10 Female | SMA Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06102L | Between Series | 4.3-10 Female | SMA Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06103L | Between Series | 4.3-10 Male | SMA Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06104L | Between Series | 4.3-10 Male | SMA Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
