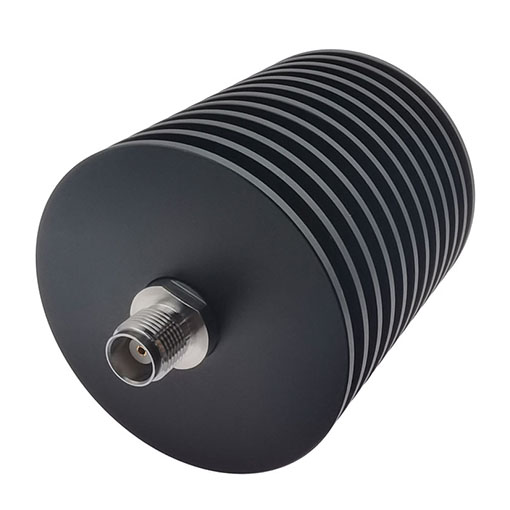

Generic photo used for illustration purposes only.

TNC Attenuator 4 GHz 50 Watts Bidirectional

P/N:RFHB04XXTC50
  • Average Power:50 W
  • Frequency Max:4 GHz
  • Connector:N
  • VSWR Max:1.2
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):70(L)*64(φ)
  • Description
    RFHB04XXTC50 from RF ONE is TNC type coaxial fixed attenuator operating DC to 4 GHz and rated for 50 Watts, bidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFHB04XXTC50, replace the XX with the desired attenuatioTNC value. Example: RFHB0430TC50 for 30 dB.
