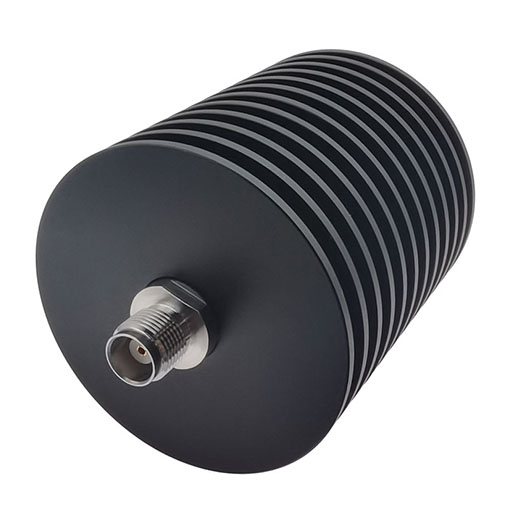

Generic photo used for illustration purposes only.

TNC Attenuator 8.5 GHz 50 Watts Bidirectional

P/N:RFHB08XXTC50
  • Average Power:50 W
  • Frequency Max:8.5 GHz
  • Connector:N
  • VSWR Max:1.25
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):70(L)*64(φ)
  • Description
    RFHB08XXTC50 from RF ONE is TNC type coaxial fixed attenuator operating DC to 8.5 GHz and rated for 50 Watts, bidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFHB08XXTC50, replace the XX with the desired attenuatioTNC value. Example: RFHB0830TC50 for 30 dB.
