RF Cable Assembly Application Considerations: Ensuring Seamless Connectivity and Performance

In today's interconnected world, the demand for efficient communication and accurate data transmission is paramount. This is especially true in the realm of RF (Radio Frequency) technology, where RF cable assemblies play a pivotal role in ensuring the integrity of signals across various industries. From telecommunications to healthcare, from aerospace to automotive, RF cable assemblies are indispensable tools. In this article, we will explore the crucial factors that engineers and technicians must consider when utilizing RF cable assemblies for different applications.

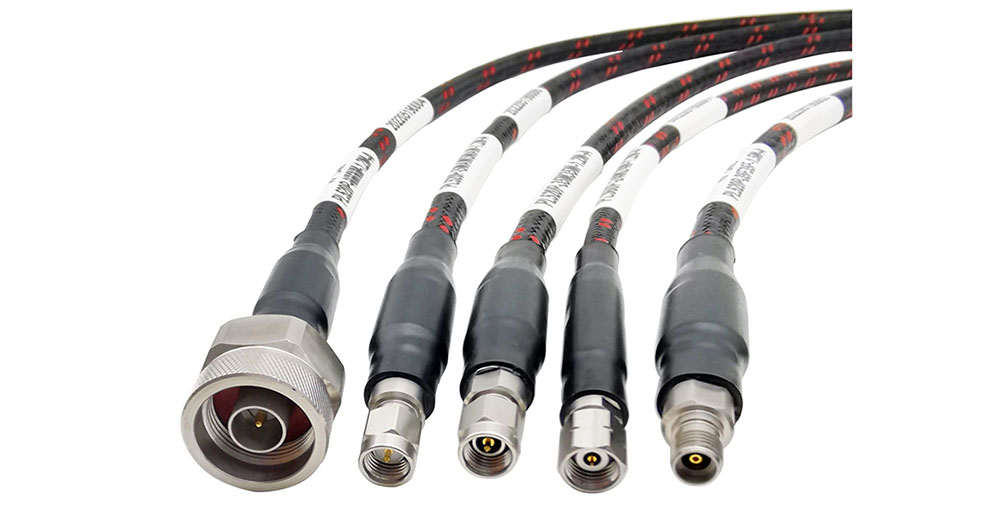

High Performance Cable Assemblies

RF ONE High Performance Cable Assemblies

Understanding RF Cable Assemblies

RF cable assemblies, often overlooked but immensely important, are the conduits that carry RF signals between components. These cable assemblies are integral to maintaining signal quality, minimizing losses, and optimizing overall system performance. They come in various types, each tailored to specific applications, and making the right choice is essential.

Types of RF Cable Assemblies

There are several types of RF and microwave cable assemblies, and hand-formable cables, semi-rigid cables, and flexible cables are the most common types.

Hand-formable cables combine the flexibility of traditional coaxial cables with the stability of semi-rigid cables. They are designed to be easily bent and shaped by hand while maintaining consistent signal integrity. These cables are used in prototyping, research, and development.

Semi-rigid cables feature a solid outer conductor, providing enhanced shielding and stability. They are often used in high-frequency and high-power applications, including radar systems, aerospace, and military equipment

Flexible cables, on the other hand, provide ease of installation and are ideal for applications where frequent movement or reconfiguration are required, such as robotics, automation, and test setups.

Factors to Consider When Choosing RF Cable Assemblies

When choosing RF Cable Assemblies, there are several factors to consider, including frequency range, cable attenuation, connector types and environmental requirements etc. Using improper cable can result in signal degradation, inaccurate measurements, and compromised system performance.

Frequency Range and Cable Attenuation

The frequency range over which an RF cable assembly operates is a critical consideration. Different applications demand varying frequency ranges, and selecting a cable that can handle the intended frequency ranges is vital. Cable attenuation, measured in decibels (dB), increases with frequency. Engineers must carefully assess acceptable attenuation levels and choose cables with appropriate attenuation ratings.

Connector Types and Compatibility

Coaxial cable assemblies are equipped with connectors on either end to establish a connection with equipment. Choosing compatible connectors is essential to ensure proper signal transmission. Common connector types include SMA, BNC, N-type, and TNC connectors, each offering distinct advantages based on application requirements.

Shielding and Environmental Factors

Shielding plays a crucial role in protecting RF signals from external interference. Depending on the application environment, such as high electromagnetic interference (EMI) areas, choosing a cable with robust shielding is crucial. Environmental factors like temperature and humidity should also be considered to ensure cable longevity.

Impedance Matching and VSWR Considerations

Impedance matching between the cable and connected components is vital for optimal signal transfer. A high Voltage Standing Wave Ratio (VSWR) indicates poor impedance matching and results in signal reflections. Engineers should strive to minimize VSWR for accurate measurements.

Flexibility and Bend Radius

In applications requiring cable movement or routing around tight corners, flexibility and bend radius become crucial. Flexible cables with smaller bend radii can withstand frequent bending without compromising signal integrity.

Temperature and Chemical Resistance

Consider the application environment's temperature range and exposure to chemicals. Some applications, like aerospace or industrial settings, may require cables with high-temperature resistance or chemical protection to ensure longevity.

Cable Handling and Installation Best Practices

Proper Cable Routing and Bending

During installation, cable routing and bending should be carefully planned to avoid sharp bends and kinks that can cause signal distortion. Proper cable management ensures consistent signal transmission.

Avoiding Cable Twists and Kinks

Twisting or kinking cables can lead to impedance variations and signal disruptions. Cables should be handled with care and installed without undue stress to maintain signal integrity.

Cable Strain Relief Techniques

Using strain relief techniques, such as cable clamps or ties, prevents excessive tension on connectors and cable joints. Strain relief ensures that cables remain securely connected and minimizes the risk of signal interruptions.

Maintenance and Longevity of RF Cable Assemblies

Regular Inspection and Testing

Periodic inspection and testing of RF cable assemblies are crucial to detect any signs of wear, damage, or signal degradation. Routine maintenance ensures accurate measurements and prevents unexpected failures.

Cleaning and Care Guidelines

Proper cleaning techniques, such as using lint-free wipes and mild cleaning solutions, help maintain connector performance. Regular cleaning prevents contamination and oxidation that can impact signal quality.

Storage and Handling Procedures

When not in use, RF cable assemblies should be stored properly to prevent bending, twisting, or crushing. Following recommended storage guidelines extends the cable's lifespan and ensures consistent performance.


RF and microwave cable assemblies are the unsung heroes of seamless RF signal transmission. By carefully considering factors such as cable type, frequency range, connectors, and environmental conditions, engineers and technicians can optimize RF test setups for accurate measurements and reliable performance. The right cable selection, proper handling, and routine maintenance are essential to harness the full potential of RF cable assemblies across various applications. As technology continues to advance, staying informed about emerging trends and best practices will empower professionals to make informed decisions, drive innovation, and pave the way for a more connected future.

RF ONE offers a complete line of high performance microwave flexible cable assemblies up to 110 GHz, with a variety of options in cable size, flexibility, loss and affordability. Benefiting from over twenty-year experience in designing and manufacturing cables & connectors, we provide highly reliable cable assemblies widely used in test & measurement, high frequency inter-connection, 5G system as well as in harsh environments such as defense, naval etc. Cables and assemblies are produced in-house, every cable assembly is tested for insertion loss, VSWR and shipped with an individual test plot. If you have any needs for RF cable assemblies, please visit www.rfone.cn or contact us via sales@rfone.cn.
