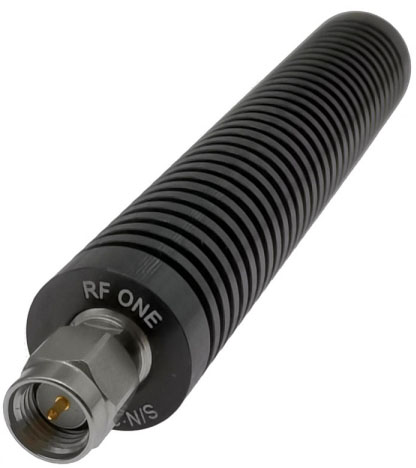

The Slim Series 30W Fixed Attenuator from DC till 18GHz

The Slim Series 30W Fixed Attenuator from RF ONE operating from DC through 18GHz.This attenuator features slim diameter which is only 15 mm. It is specially designed for the applications when space is limited.

• DC-18GHz,VSWR 1.35 Max
• Standard attenuation values from 1 dB to 60 dB
• Available in SMA connector with different configurations
• Ruggedized stainless steel connector body, aluminum heat sink

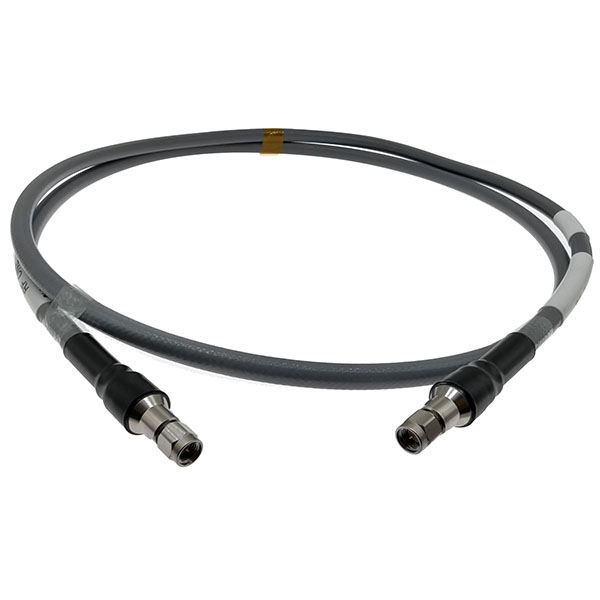

Ultra-low Loss Phase Stable Test Cables PL800

PL800 cable from RF ONE exhibits ultra-low loss, high power and phase stability. The low density PTFE tape wrapping dielectric elevates its electrical performance with minimized loss and consistent phase stability over temperature and mechanical changes.

• Exceptional low loss, typical 0.67dB/meter to 18GHz
• Excellent VSWR, 1.20 (typ) through 18GHz
• 500PPM(-40 to +85 C degree) temperature phase
• Flex stability:+/-5 degree@18GHz(wrap 360 degree around a 80mm mandrel)
• Widely used in test labs, production floor testing, anechoic chambers etc.

Highly Compact 150 W RF Termination up to 18GHz

Following the miniature high power 150W & 250W fixed attenuators,150W miniature RF Terminations from RF ONE are also offered.

RF ONE's specially designed 150W N type terminations come in highly compact size 105*52*80mm, ideally suited for limited space where cooling device is equipped. This attenuator works from DC through 18GHz. Each termination is shipped with individual test plot.

Custom drilled holes are available to make mounting easy and neat.
