Newsletter March 2022

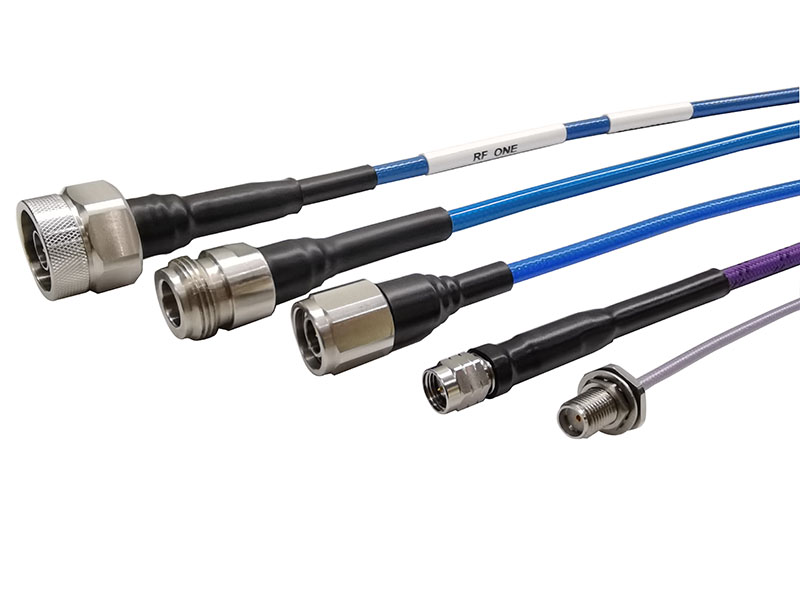

Microwave Flexible Cable Assemblies Operating to 110 GHz
RF ONE offers a complete line of high performance microwave flexible cables up to 110 GHz, with a variety of options in cable size, flexibility, loss and affordability.
- Versatile selections in different flexibility, loss and power handling
- Low loss cables available to 18, 26.5, 40, 50, 67, 110 GHz
- Proven phase stability vs. temperature and flexure
- Precise phase match available
- Various ruggedized armor and connector options
- Competitive price and very quick delivery

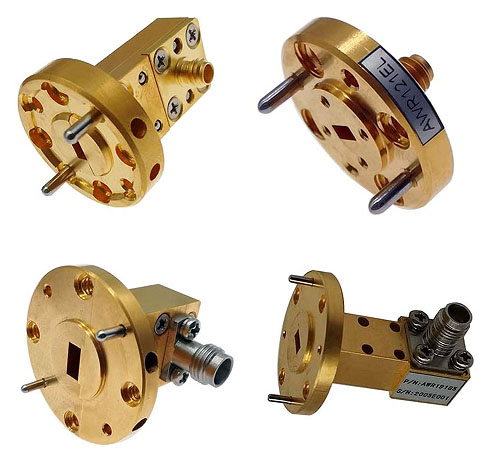

V Band Through W Band Waveguide to Coax Adapters
Waveguide to coax adapters also known as waveguide coaxial transitions.The AWR101 from RF ONE is WR10 to 1.0 mm female right angle adapter which operates from 75 GHz to 110 GHz with max VSWR 1.38.
Now the V band through W band waveguide to coax adapters from RF ONE are available with WR10, WR12 and WR15 in 1.0 mm and 1.85 mm interfaces, shipped from stock with test plots.

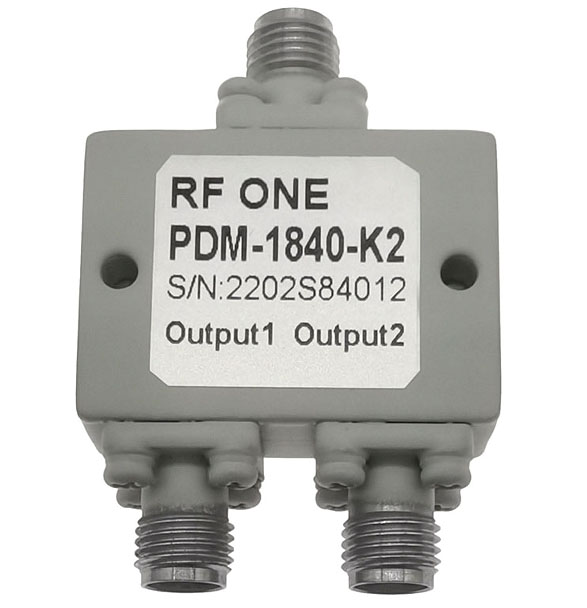

18GHz to 40GHz 2 Way Wilkinson Power Divider
PDM-1840-K2 from RF ONE is 18GHz to 40GHz 2 way 2.92mm Wilkinson power divider rated at 20 Watts, featuring 1.0dB loss and typical 22dB isolation across the entire frequency range.
More ultra-wide-band dividers including10 GHz-43.5 GHz & 1GHz-40 GHz are available from RF ONE supporting a wide range of applications in 5G, Ka and K-Band.
