Newsletter April 2023
Ka Band Waveguide Crossguide Directional Couplers

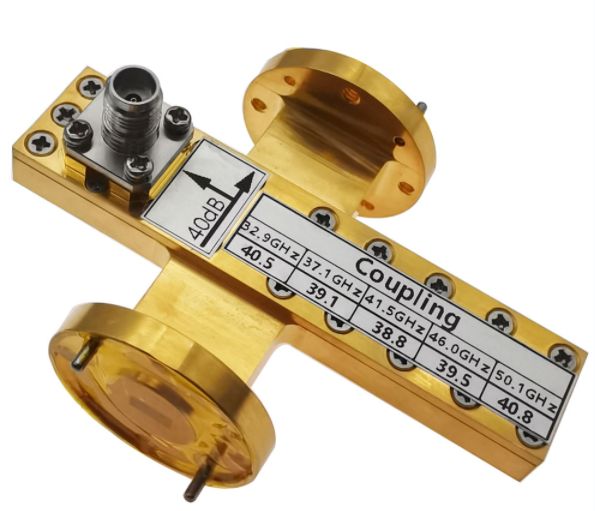

RF ONE offers various types of waveguide couplers for power monitoring and system control use. WDCT22185F-40 from RF ONE is the WR22 Crossguide Directional Coupler with 1.85mm female as coupling port. This waveguide coupler has frequency ranges from 32.9 to 50.1GHz(Usable to 52.4GHz).
- 1.1 max VSWR for the main line
- Standard coupling values 25, 30, 40, 50 & 60 dB
- Compact design for space-restricted applications
- Coupling ports in options of Waveguide & Coax
- Custom designs in fast delivery
Double Ridge Waveguide to Coax Adapters

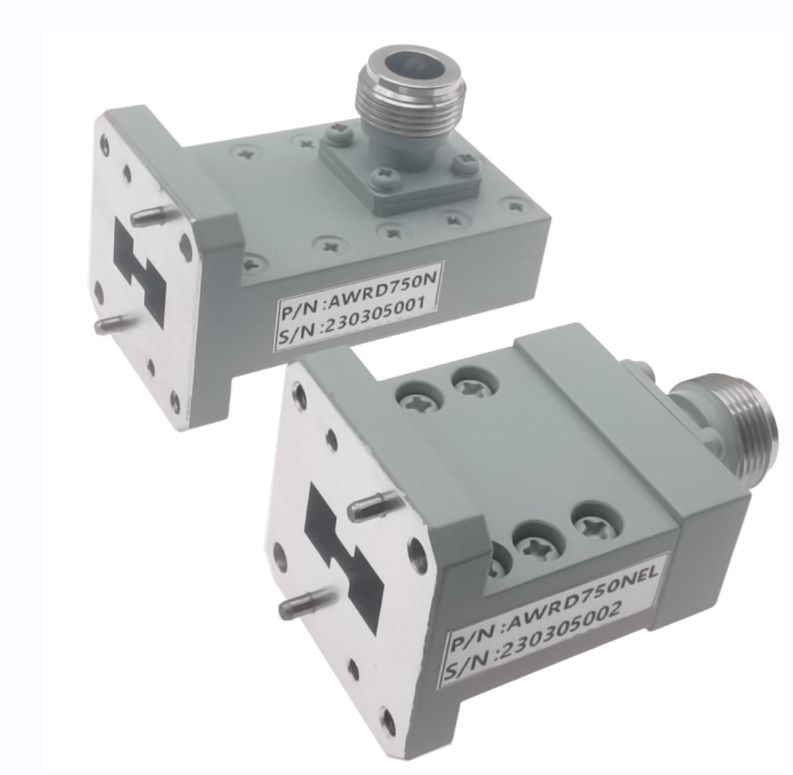

AWRD750N and AWRD750NEL from RF ONE are Double Ridge WRD750 to N female waveguide to coax adapters respectively in right angle and end-launch styles with square cover flange. These waveguide coaxial transitions operate from 7.5GHz to 18GHz and have standard avg power handling of 200 Watts.
- Low VSWR, 1.3 max through the whole bandwidth
- Body style come in options of right angle and in-line
- Higher power handling is available
- Ruggedized stainless steel coax body
- Competitive price, delivered with plots
SMA In-Series 4 Hole Flange Adapters up to 27GHz

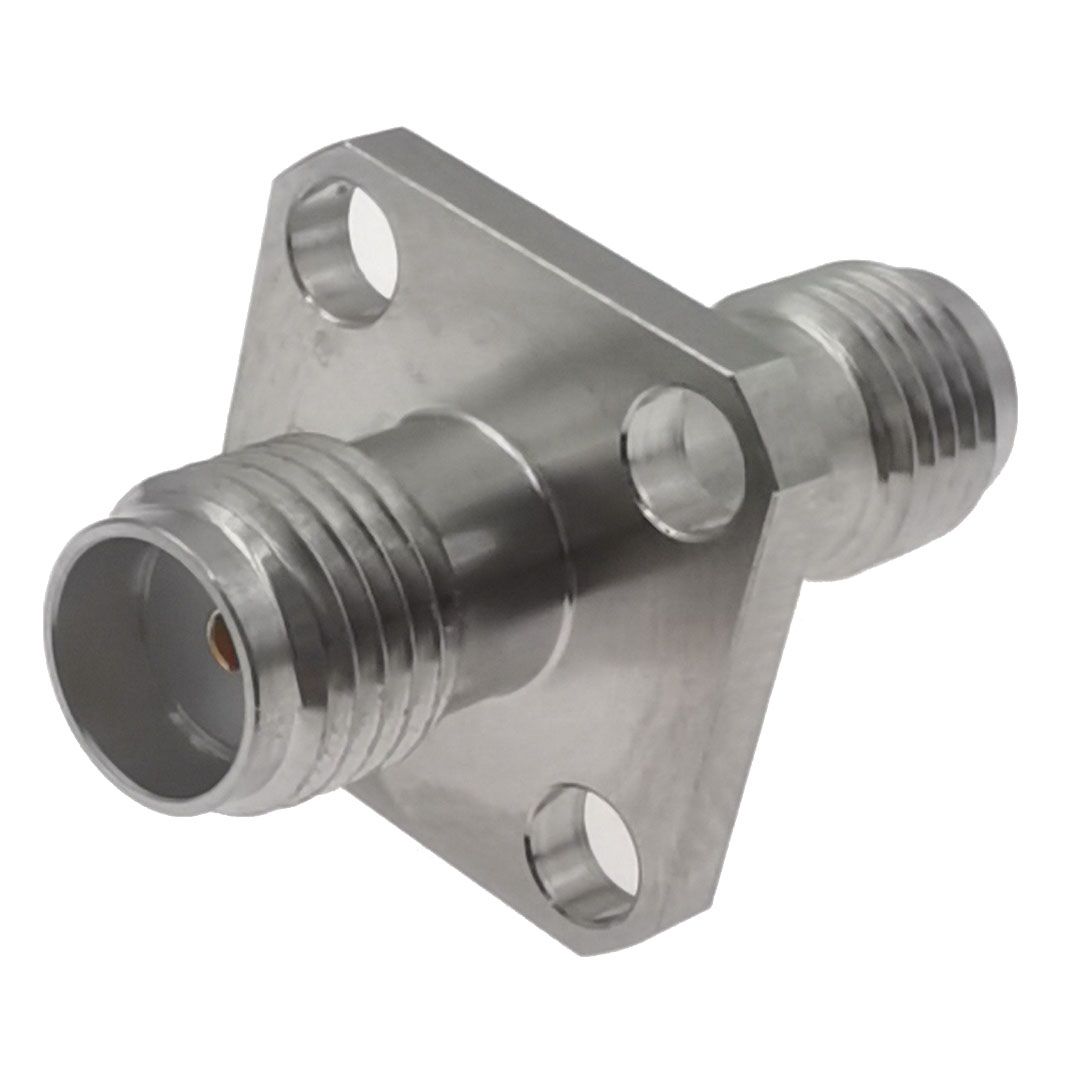

Apart from the precision SMA adapters in straight and right angle styles, In Series SMA female to SMA female 4 hole flange mount adapter is also available at RF ONE. This adapter has max frequency ranges of 27GHz and typical VSWR of 1.15:1.
- Excellent VSWR, 1.2 max to 27GHz
- Passivated Stainless Steel Body
- Unbeatable price, 100% RF Test
- Off-the-shelf, from stock
- REACH & RoHS compliant
- 4 hole flange and bulkhead mount adapters in 1.85mm, 2.4mm, 2.92mm, 3.5mm, N type connectors are also offered
