23 March 2023
Newsletter March 2023
RF ONE Monthly Newsletter
March 2023 • Issue 26

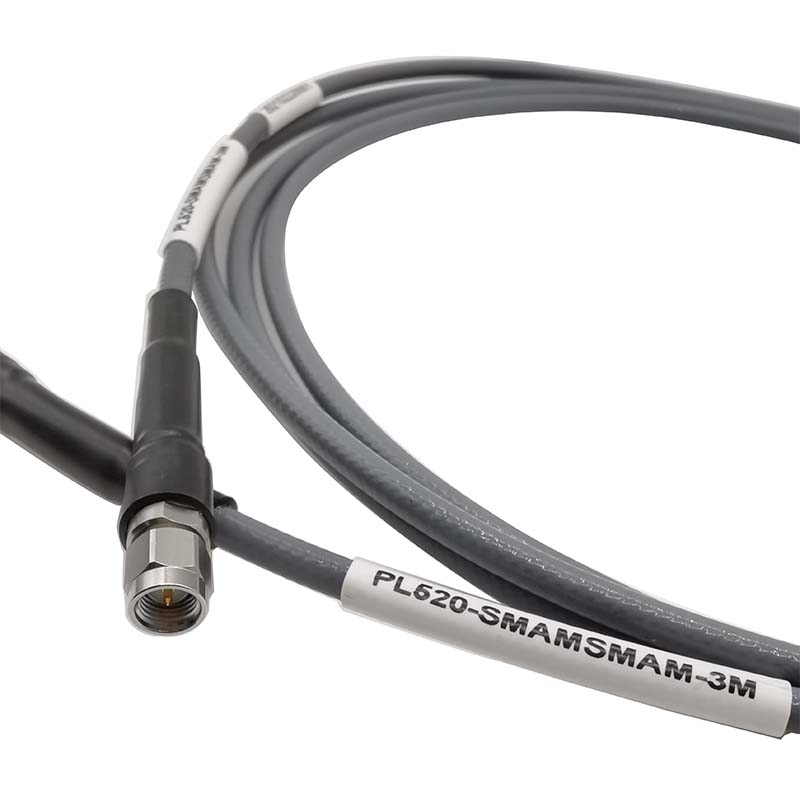

Ultra-low Loss Phase Stable Cables up to 26.5GHz
PL520 & PL520P cables from RF ONE are multi-purpose microwave flexible cables for K band applications. These cables exhibit unsurpassed low loss, phase stability over temperature fluctuation and flexure till 26.5GHz.
- Mechanical Phase Stability < +/-5degree@26.5GHz
- Temp Phase Stability < 550ppm(-40 to +85 degree)
- Available connectors N type, SMA, 3.5mm, TNC
- From stock or one week delivery
- Ruggedized armor options in PTFE & PUR

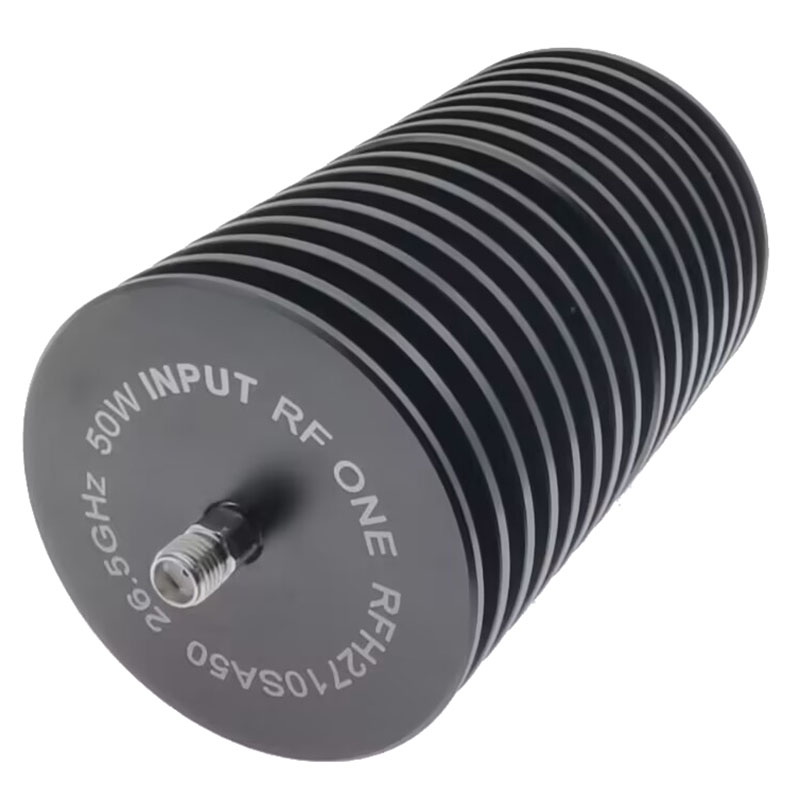

26.5GHz SMA Fixed Attenuator rated at 50 Watts
RFH27XXSD50 from RF ONE is a SMA unidirectional fixed attenuator operating from DC to 26.5GHz, rated at 50 Watts. The RoHS compliant attenuator uses high precision thin-film designs, exhibiting tight accuracy and low VSWR.
- DC-26.5 GHz, max VSWR 1.30
- Standard attenuations 10dB,20dB,30dB
- Ruggedized stainless steel connector body
- Fast delivery, competitive price

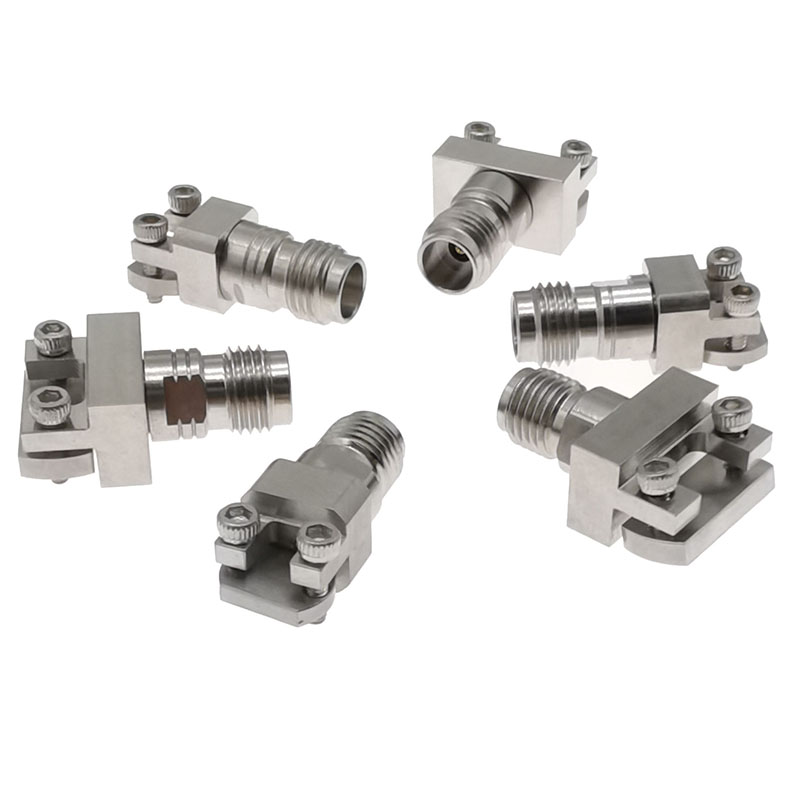

Low Profile 1.85mm End-launch Connectors up to 67GHz
RF ONE offers mmWave End Launch connectors for applications where the connection is required between cables and PCB. 1.85mm End Launch connectors have max frequency 67GHz. 2.92mm and 2.4mm End Launch connectors are also available.
- 1 week lead time
- Available in both jack and plug
- Super small and low profile design
- Field replaceable, requiring no solder for reusability
