22 August 2023
Newsletter August 2023
RF ONE Monthly Newsletter
August 2023 • Issue 31

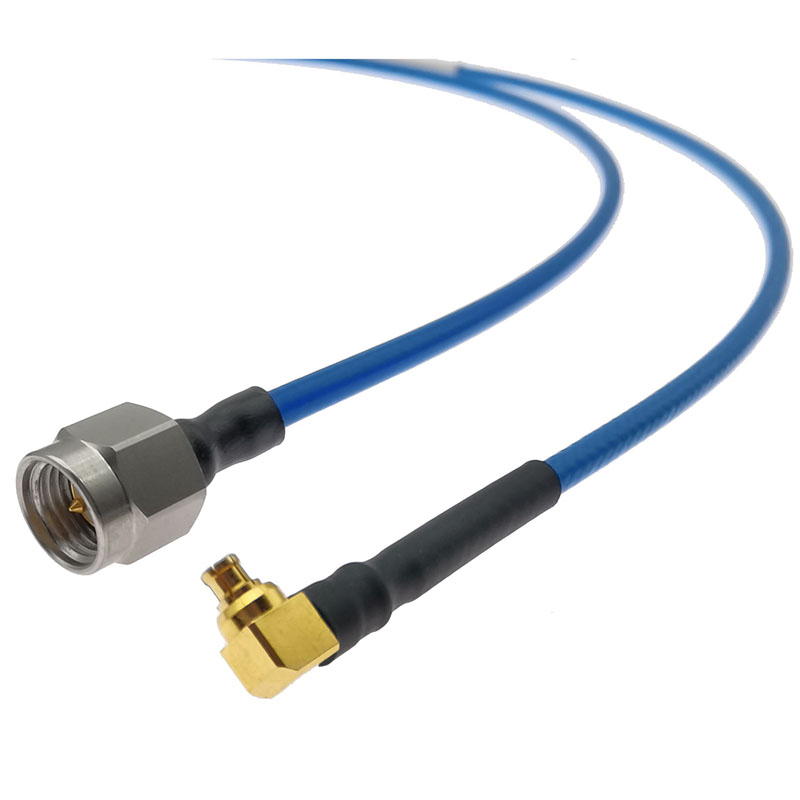

Temperature Phase Stable Flexible TP220 Cable
TP220 from RF ONE is low-loss and temperature phase-stable cable designed for phase-sensitive applications where minimal phase change over temperature is demanded. Thanks to its PFA dielectric, TP220 cable offers outstanding 300 PPM (-40 to 60 degree) phase stability.
- Excellent phase and insertion loss stability vs temperature
- No PTFE Knee
- Low loss operating to 40 GHz
- Small bending radii and low profile for easy routing
- Connector options in 2.92mm, SMP & SMA

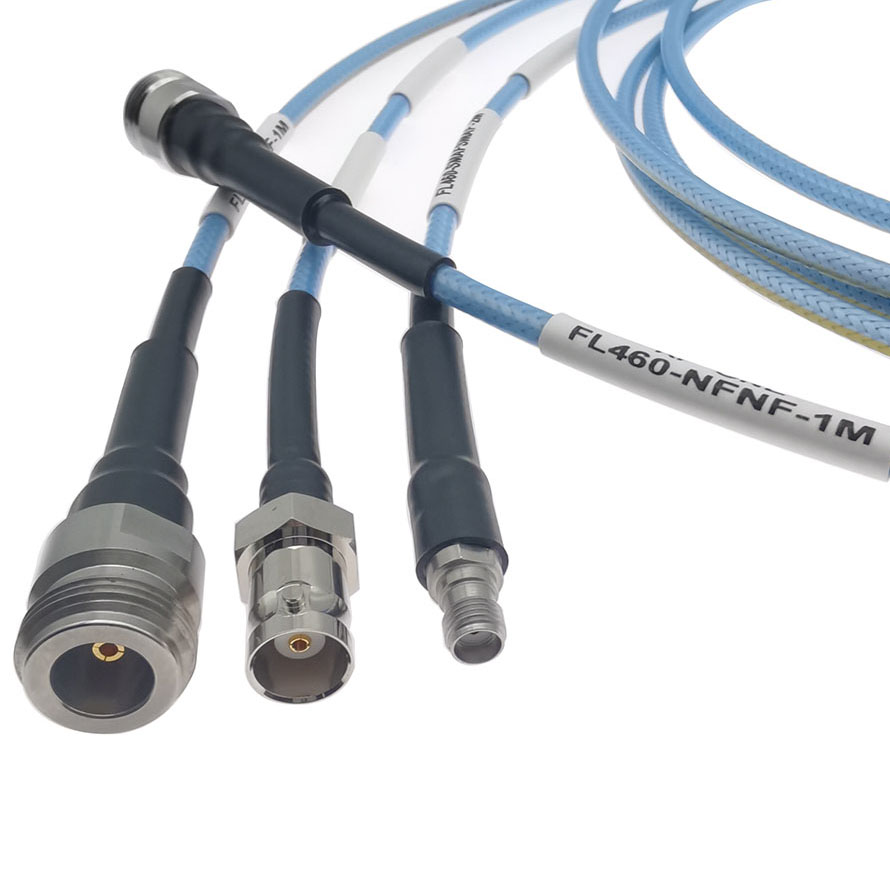

High Flex Life FL Series Cables up to 26.5GHz
FL series from RF ONE are high flex life low loss cables with max operating frequency up to 26.5 GHz. These cable assemblies can be widely used in both interconnection and test applications, where low loss and harsh handling are required.
- Cross Semflex HP160S, HP190S
- Superior shielding effectiveness min 100 dB
- Torsion resistant, high pull strength
- Fast delivery with test plot
- Available with ruggedization

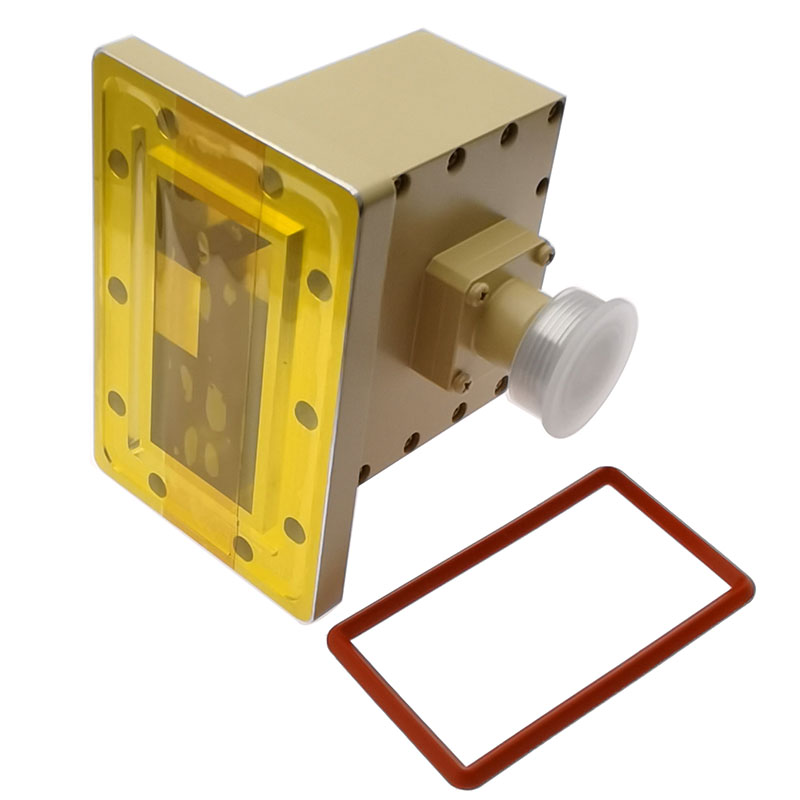

S Band Waveguide WR284 to Coax Transitions
WR284 waveguide transitions are the low loss components capable of handling high power, operating from 2.60 to 3.95 GHz. Our WR-284 to coax adapters are available in right angle & end-launch(in-line) styles.
- 1.2 max VSWR over full band 2.6-3.95 GHz
- Available in DIN 7/16, N type & SMA connectors
- Grooved or custom flanges
- WR284 couplers, terminations also offered
