18 July 2023
Newsletter July 2023
RF ONE Monthly Newsletter
July 2023 • Issue 30

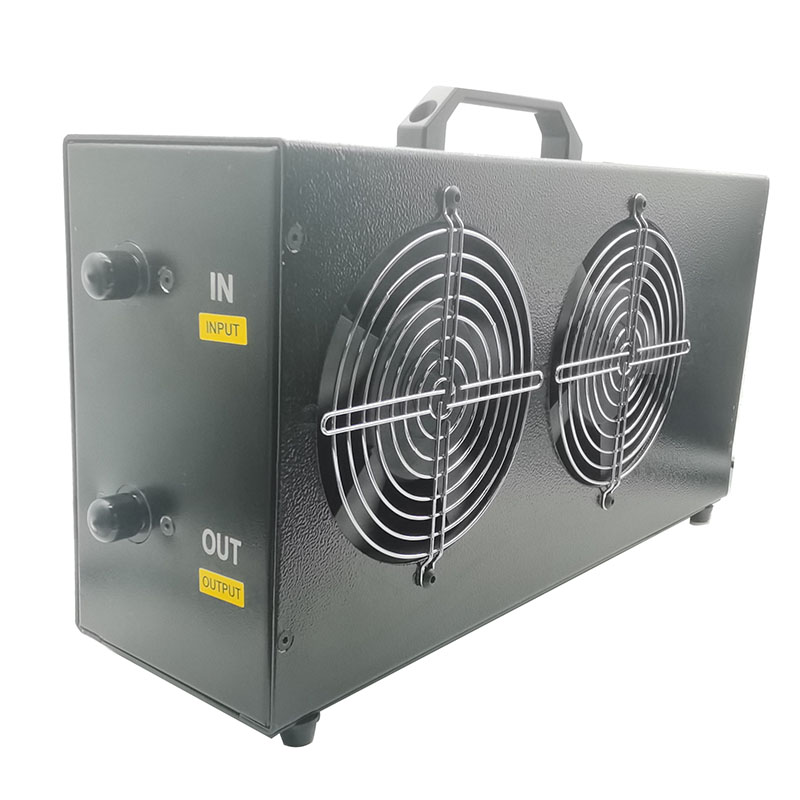

18GHz 600 Watts Forced Air Cooled Fixed Attenuator
In addition to our convection cooled high power attenuators, the forced air cooled, highly reliable fixed attenuators are also available at RF ONE. RFH18XXND600-F is the fan cooled attenuator rated at 600 watts, operating from DC to 18GHz.
- 1.45 Max VSWR through DC to 18GHz
- Standard attenuations come with 10dB to 60dB
- Fans integrated for effective heat dissipation
- Portable design with a convenient handle

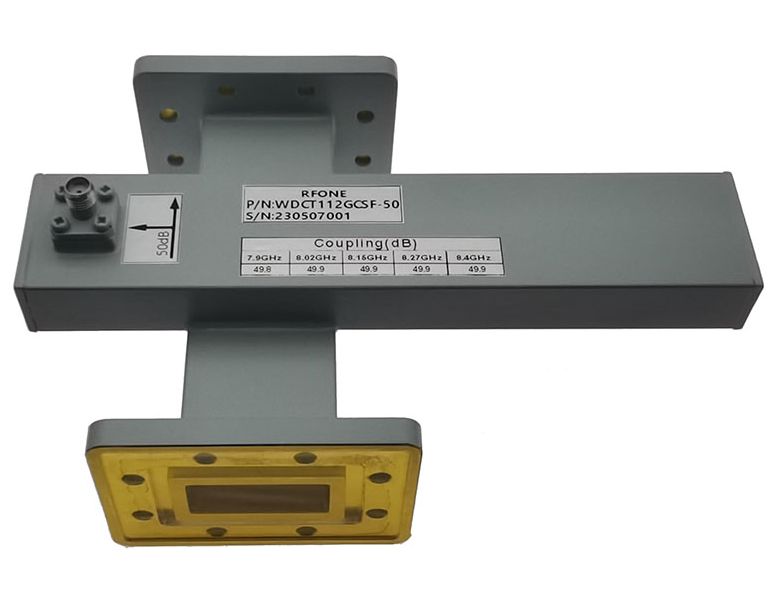

Waveguide Crossguide Directional Couplers
RF ONE offers various types of waveguide couplers for power monitoring and system control use. WDCT112GCSF-50 from RF ONE is the WR112 Crossguide Directional Coupler with SMA female as coupling port, CPR112G Grooved for both Flange 1 and Flange 2.
- 1.1 max VSWR for the main line
- Standard coupling values 25, 30, 40, 50 & 60 dB
- Compact design for space-restricted applications
- Coupling ports in options of Waveguide & Coax
- Custom designs in fast delivery

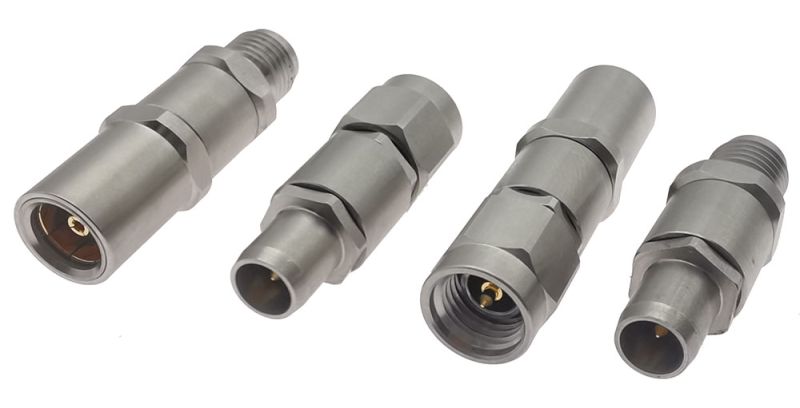

BMA(OSP) to 3.5mm Adapters operating to 18GHz
BMA(OSP) to 3.5mm between-series adapters operating to 18GHz, with a slide-on interface for fast and toolless blind mate connection.These BMA to 3.5mm adapters are suitable for high precision test purpose which requires with reliable and repeatable performance.
- Excellent VSWR 1.2 max through 18GHz
- Available in DIN 7/16, N type & SMA connectors
- Intermateable with OSP connectors
- Small sized, similar to SMA
- From stock, ship same business day
