Newsletter December 2024

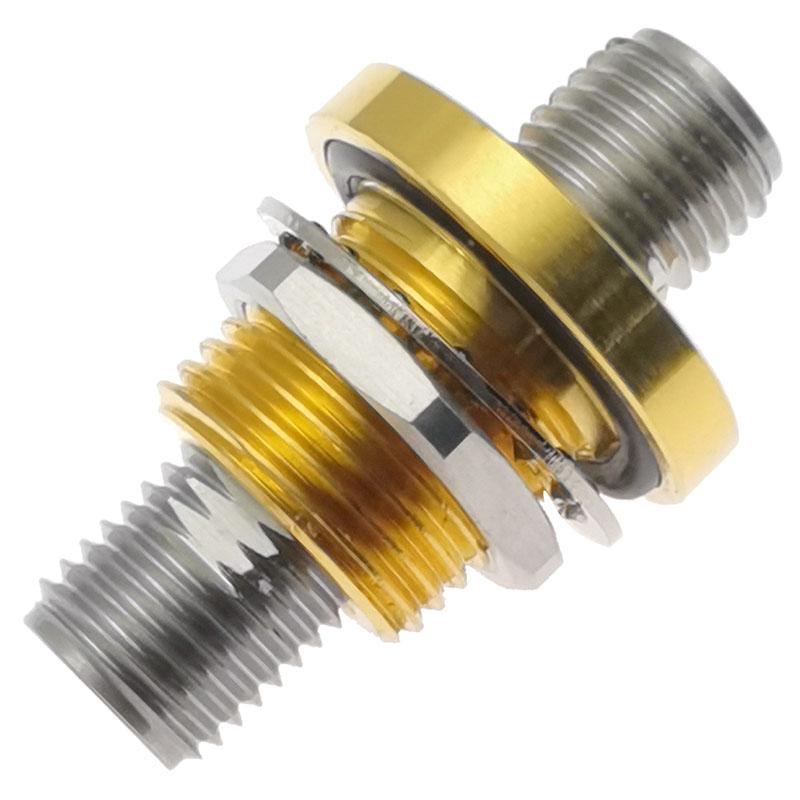

Bulkhead Hermetically Sealed Adapters
RF ONE has extended our wide range of coax adapters with a new line of bulkhead hermetically sealed feedthrough adapters. These adapters are designed for harsh environment as high pressure and other airtight seal applications.
- Available in SMA, 2.92, 1.85 and 1.0mm
- Built from Kovar and glass bead
- All adaptors are tested for hermeticity
- Leak rate＜1x10-8 cc/sec of helium
- IP68 when mated

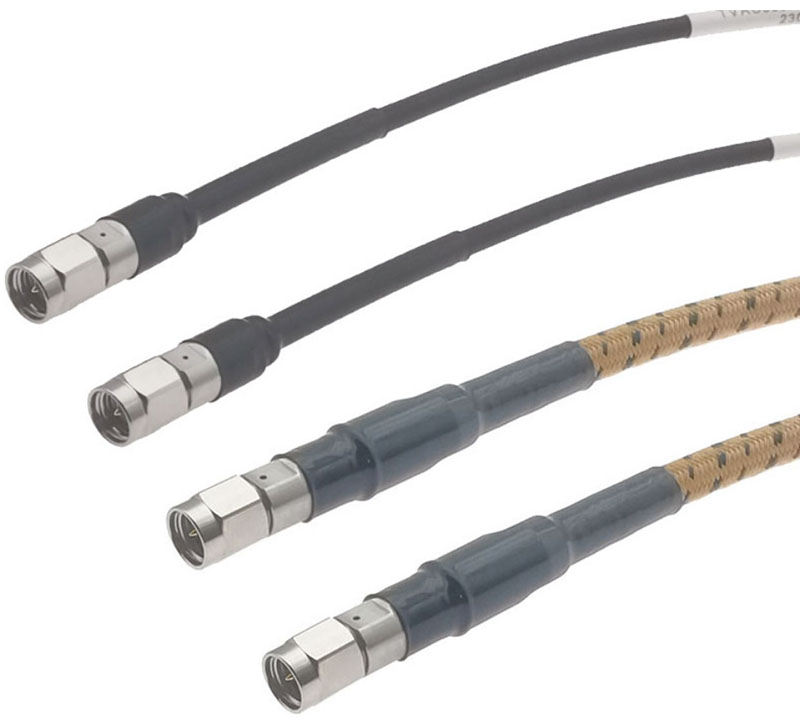

Thermal Vacuum Phase Stable Cable Assemblies
RF ONE provides thermal vacuum low outgassing phase stable cables with max operating frequency options of 18 GHz, 26.5 GHz and 40 GHz. These cables are available in assemblies in type N, SMA, TNC, 2.92mm and SSMA connectors, available in FEP jacket or with armor protection.
- Low outgassing: TML<1%,CVCM<0.1%
- Ideal for thermal vacuum use
- 100% X-ray examination in solder
- All with vented connectors
- Low loss phase stable

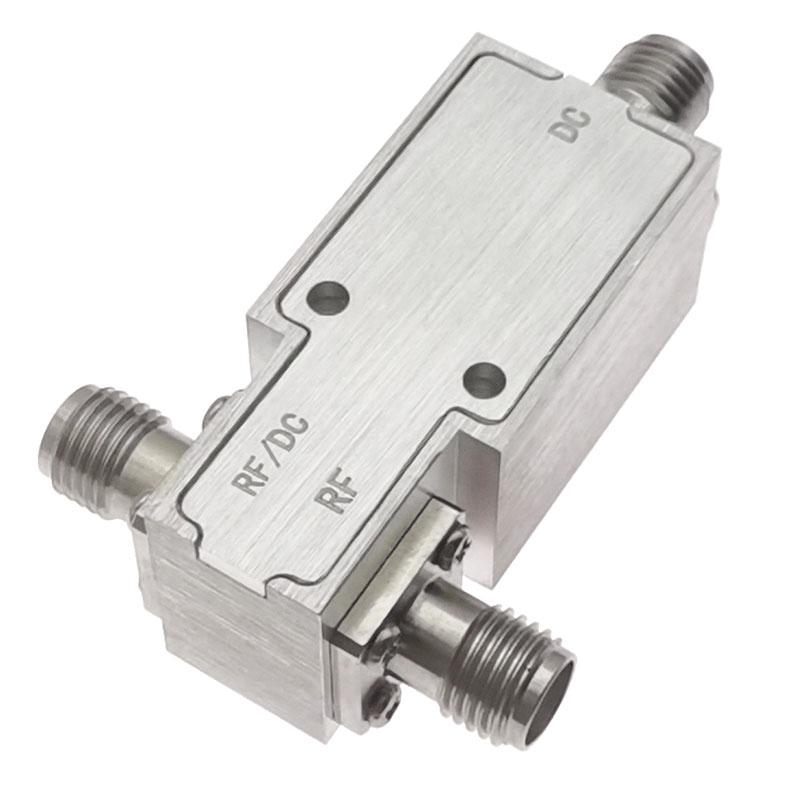

Coax Bias Tees 16 kHz up to 110 GHz
Bias tees are used to supply DC currents or voltages to RF circuits, while allowing the RF signals pass through the main line. RF ONE newly offers an array of 1.0mm, 1.85mm, 2.4mm, 2.92mm and SMA bias tees, featuring broad band and low insertion loss.
- Ultra-wideband, 16 kHz and up to 110 GHz
- High isolation, low insertion loss
- High voltage and high current
- Widely used for amplifiers, active antennas etc
