29 November 2024
Newsletter November 2024
RF ONE Monthly Newsletter
November 2024 • Issue 36

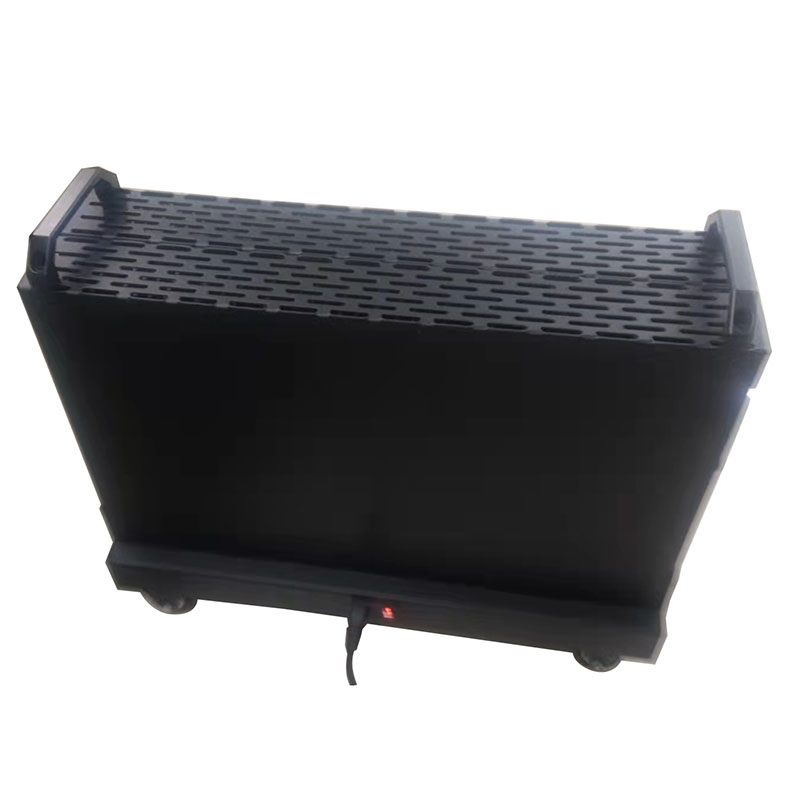

N Female Termination rated for 1000 Watts
RFT031000N1 from RF ONE is N female termination operating from DC to 3 GHz and rated at 1000 Watts avg power, 10kW peak power. This termination is reliable in power handling, robustly constructed, easy to use with wheels.
- Excellent VSWR 1.2 max through 3 GHz
- Available in both male & female
- Efficient and convenient fan cooling
- In options of 4 GHz version

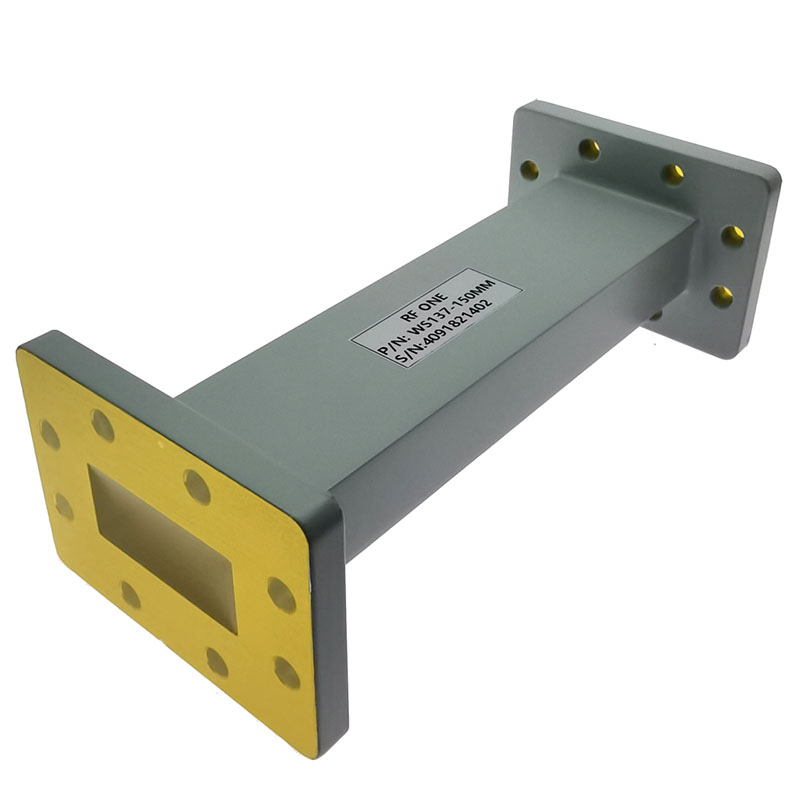

WR137 Waveguide Straight Sections
WS137-150MM from RF ONE is a 150mm length WR-137 waveguide straight section and comes with two UDR70 rectangular cover flanges, covering frequency ranges from 5.38-8.17 GHz.
- Excellent VSWR, 1.05 max
- Numerous flange configurations available
- Customization in different lengths
- Waveguide sizes from WR-3 to WR-1150

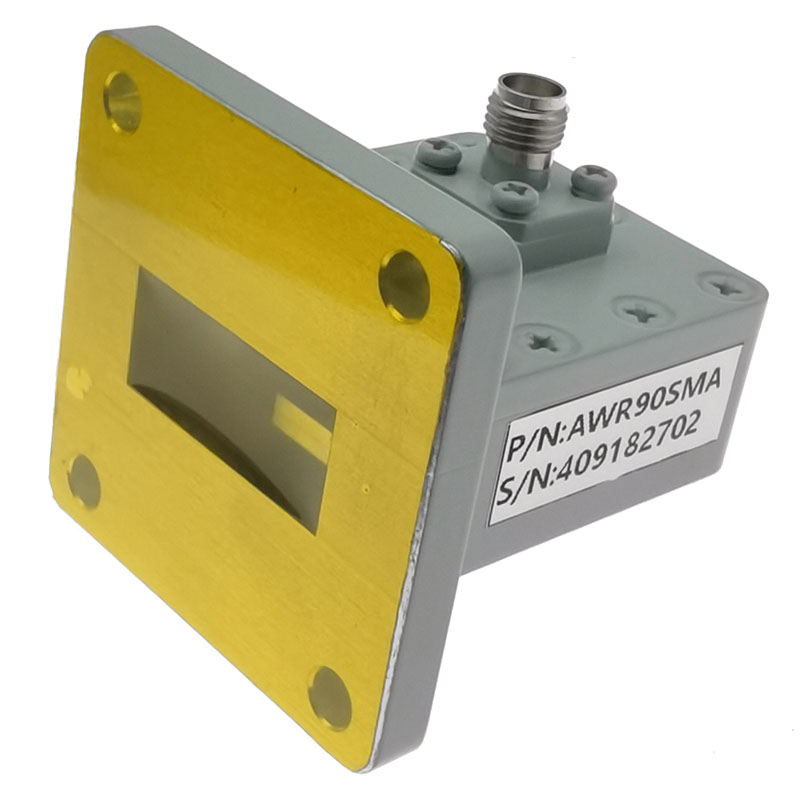

WR90 Waveguide to Coax Transitions
RF ONE offers a complete line of waveguide to coaxial transitions ranging from WR10 to WR1150, WRD110 to WRD840. WR90 waveguide to coax adapters from RF ONE have a frequency ranges of 8.4-12.5 GHz for X band applications.
- 1.2 max VSWR over full band 8.4-12.5 GHz
- Standard coax connectors in N type, SMA and TNC
- Body styles in options of right angle and in-line
- Available in custom flanges, VSWR and materials
