Newsletter February 2023

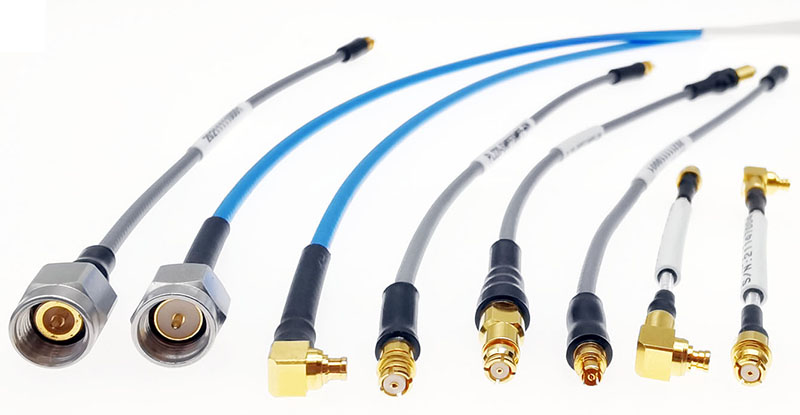

SMP & Mini SMP Flexible Cable Assemblies up to 67GHz
RF ONE provides SMPM (GPPO compatible) and SMP (GPO compatible) cable assemblies with flexible 047, 085 cables up to 67 GHz. They feature low profile, low loss and super flexibillty, ideal for space tight applications such as in high speed testing or short length interconnection.
- DC to 67 GHz, typical VSWR 1.30
- SMP & SMPM come with straight & RA styles
- 1.85, 2.4 & 2.92mm available for the other end
- Custom design available with fast delivery

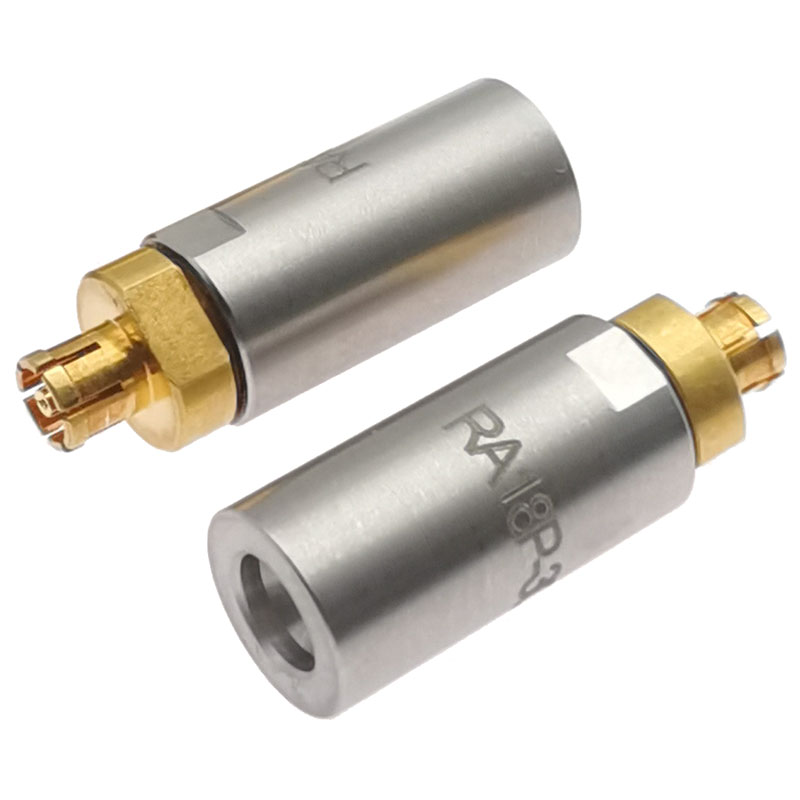

SMP (GPO) Fixed Attenuators 40GHz 2W
The subminiature SMP interface is very useful in high frequency and high density coaxial applications.
As a complement to our large selections of attenuators, SMP (GPO compatible) fixed attenuators from RF ONE are offered in 18GHz, 26.5GHz and 40GHz options, rated at 2 Watts.
- In Limited Detent & Full Detent
- Passviated stainless steel and BeCu body
- Frequency options 18GHz, 26.5GHz and 40GHz
- Standard attenuation from 1dB to 30dB

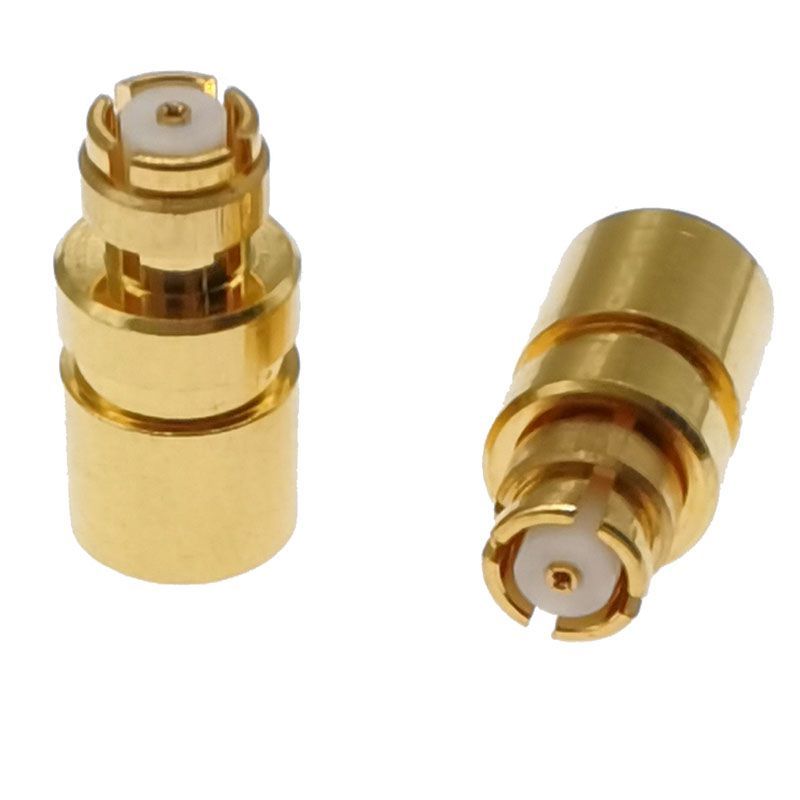

SMP (GPO), Mini SMP( GPPO) Terminations 40GHz 2W
Apart from attenuators, RF ONE carries a full series of SMP and Mini SMP (SMPM) load terminations up to 40GHz. Both of our SMP and SMPM loads are available off-the-shelf, in male and female genders.
- Options of 18GHz, 26.5GHz and 40GHz
- Avg power in 1 Watt & 2 Watt
- No MOQ, in stock or 1 week delivery
- 100% RF tested, delivered with plots
