21 June 2022
Newsletter June 2022
RF ONE Monthly Newsletter
June 2022 • Issue 19

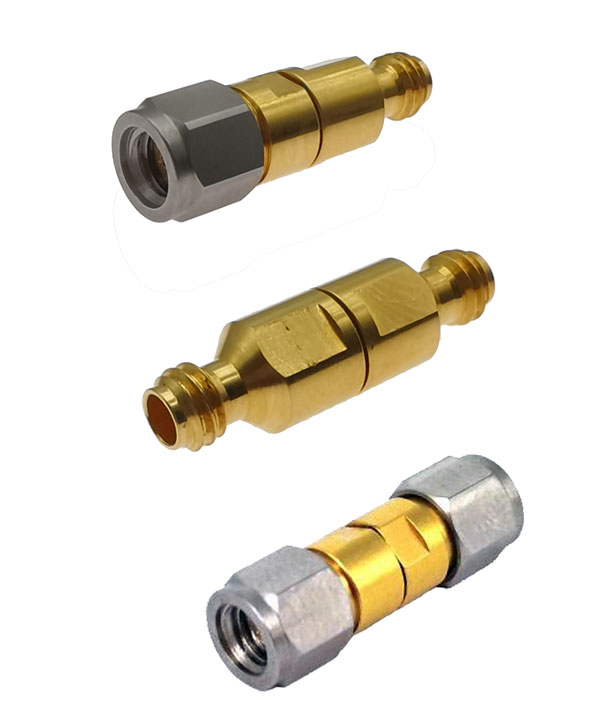

V Band through W Band 1.0mm Series Coaxial Adapters
RF ONE offers a selection of precision 1.0 mm in-and-between series adapters which provide high accuracy, ease of use in V band to W band coaxial measurement.
- 1.0mm to 1.0mm, 1.0mm to 1.85mm and 1.0mm to 2.92mm adapters available
- DC-110GHz VSWR max 1.35, insertion loss max 0.5 dB
- From stock or in less than 1 week
- Each adapter shipped with individual test plot
Low Power Waveguide Teminations covering 1GHz to 50GHz
In addition to the wide range of coax 1.85mm, 2.4mm, 2.92mm, SMA, N type terminations, we also offer low power waveguide terminations with extremly low VSWR (less than 1.03). They are built with conductive chemical oxidized aluminum and finished in grey painting.
- Waveguide sizes from WR19 to WR650, covering 1GHz to 50 GHz
- Iron carbonyl absorbing element
- Very low VSWR 1.03 over full frequency
- UG, CPR and custom flanges available
- Shorter lengths available

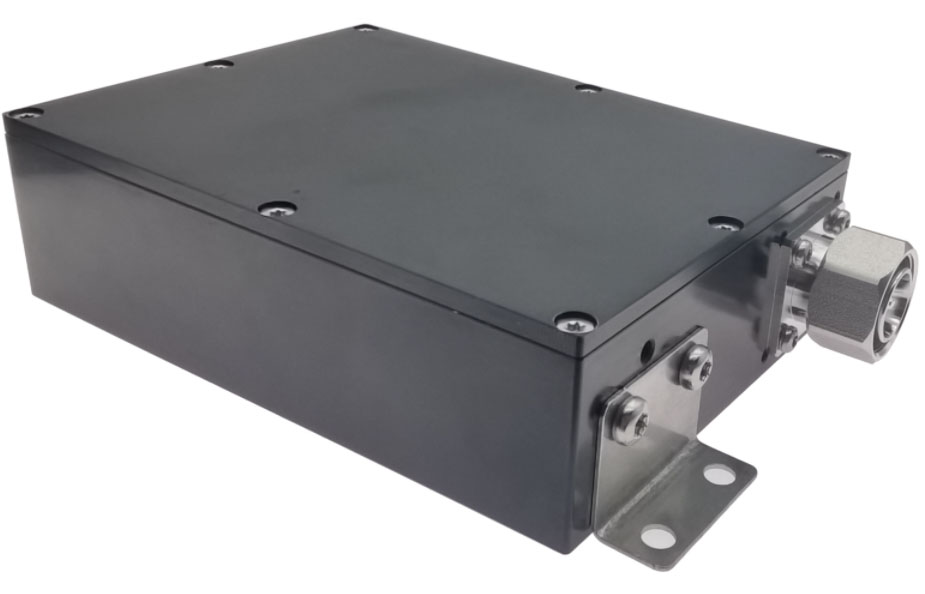

Test Grade 160dBc Low PIM Loads
RF ONE RTL series of Low PIM Loads are built with high quality low PIM cables and precision machined aluminum heat sinks.These terminations are designed for broad band applications, covering from 380MHz up to 6000MHz, ideal for multiple carrier solutions.
- Avg power rates options 25W, 30W, 50W, 70W,100W, 150W and 200W
- Comes with N type, 7/16 DIN and 4.3-10 connectors, both male and female versions are available
- 100% VSWR and 3rd PIM tested
- No MOQ, fast delivery in 2 weeks
- IP67 available
