23 August 2022
Newsletter August 2022
RF ONE Monthly Newsletter
August 2022 • Issue 20

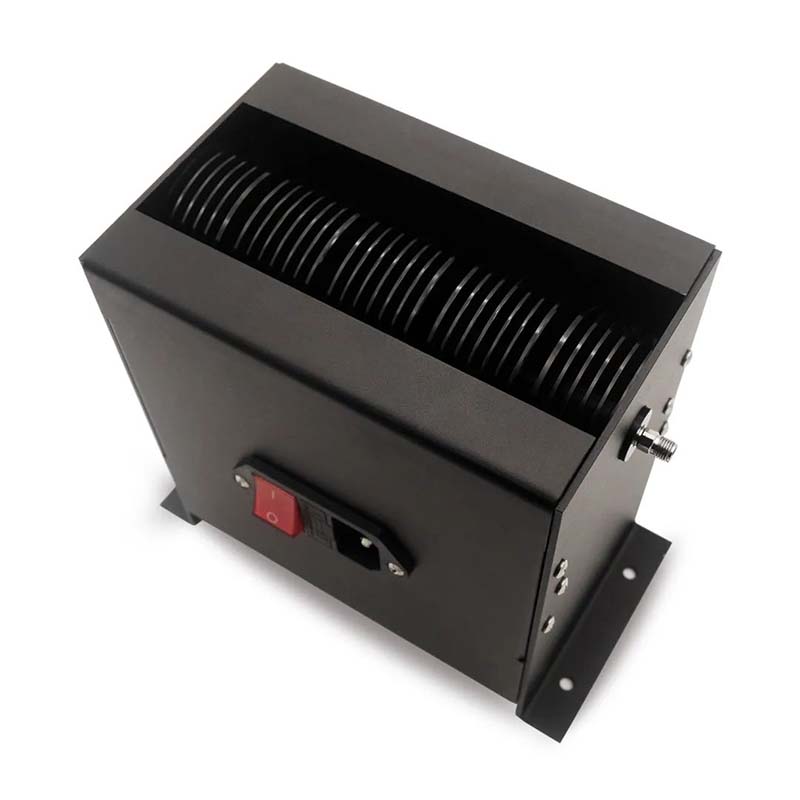

2.92mm Fixed Attenuator Rated at 100 Watts
RFH40XXKD100A from RF ONE is DC-40 GHz 100W Fixed Attenuator. This attenuator provides a fully self-contained and convenient means of dissipating heat through the built-in fan, eliminating complicated setup procedures.
- Operating to 40GHz and handling 100 Watts
- Standard attenuations 20dB, 30dB, 40dB
- Compact, light weight and self-contained design
- Fast delivery, competitive price

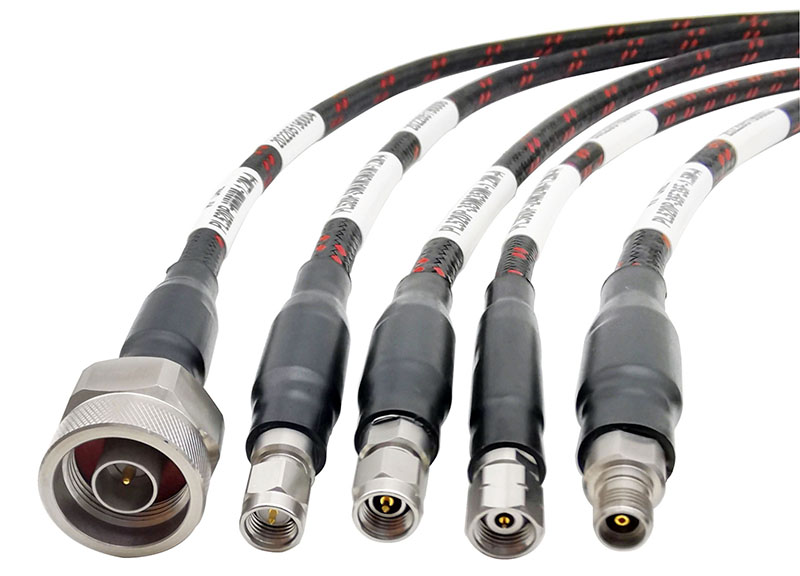

Armored Bench Test Cables up to 110 GHz
PhaseRel armored cables from RF ONE are designed for test and lab applications where repeatable, accurate measurements and endurable construction are needed.
- Excellent phase and amplitude stability with flexure
- Highly flexible and longer flex life
- Strain relief design and multi-layer armors
- 110GHz, 67GHz, 50GHz, 40GHz, 26.5GHz, 18GHz options

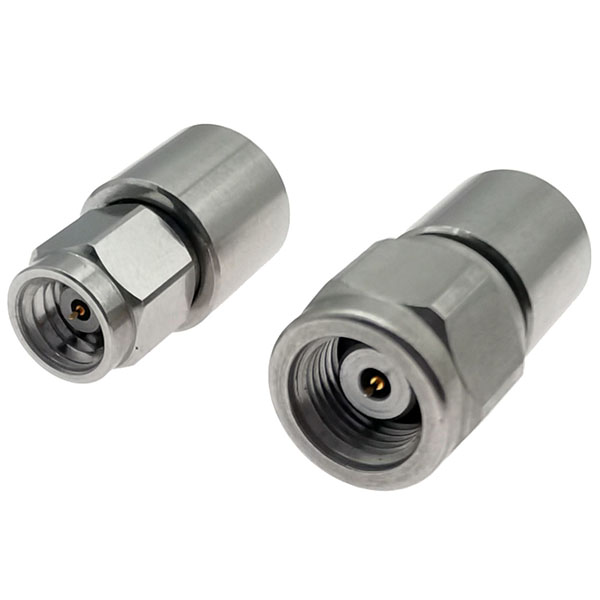

New 1.0mm and 1.35mm Precision Terminations
Our 1.0mm & 1.35mm 1W male terminations operate to 110 GHz and 90 GHz respectively. These 1.0mm and 1.35mm terminations are ideal for E band or W band precise RF measurements, self-driving vehicle radar and 5G applications etc.
- Built with ruggedized stainless steel body
- Excellent VSWR, typical 1.4 max
- Less than 1 week delivery
- 100% RF tested,delivered with plots
