20 June 2023
Newsletter June 2023
RF ONE Monthly Newsletter
June 2023 • Issue 29

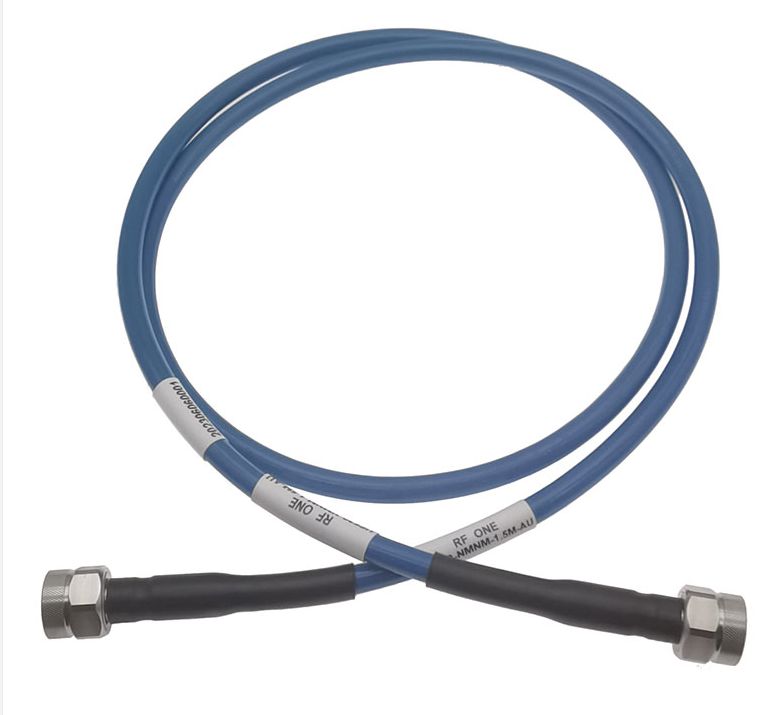

Super Flexible PUR Armored Test Cable Assembly
The UF520 is super-flexible phase stable cable with ruggedized PUR armor options, operating to 26.5 GHz. This cable assembly is an ideal choice for test purpose where repeated flexure and bending are required.
- Outstanding flexibility from stranded center conductor and PUR jacket
- Excellent mechanical phase stability (+/-4 degree to 26.5GHz)
- Long flex life min 15,000 cycles
- Available connectors N type, SMA, 3.5mm
- From stock or one week delivery

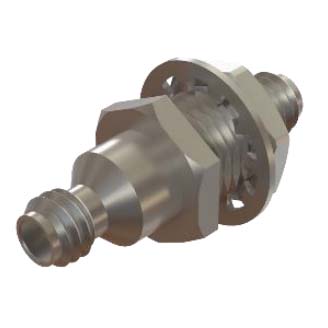

1.0mm In-Series Bulkhead Adapter up to 110GHz
A11001P-Y from RF ONE is a 1.0mm female to 1.0mm female bulkhead adapter that operates from DC to 110 GHz. This adapter is built to standards of IEC61169 (interface) and MIL-DTL-45204(center contact gold plating).
- 1.35 max VSWR to 110GHz
- Excellent insertion loss, 0.5dB max
- Short delivery 1 week
- 4 hole flange also available
- Ideal for use in ultra-broadband measurement and semiconductor

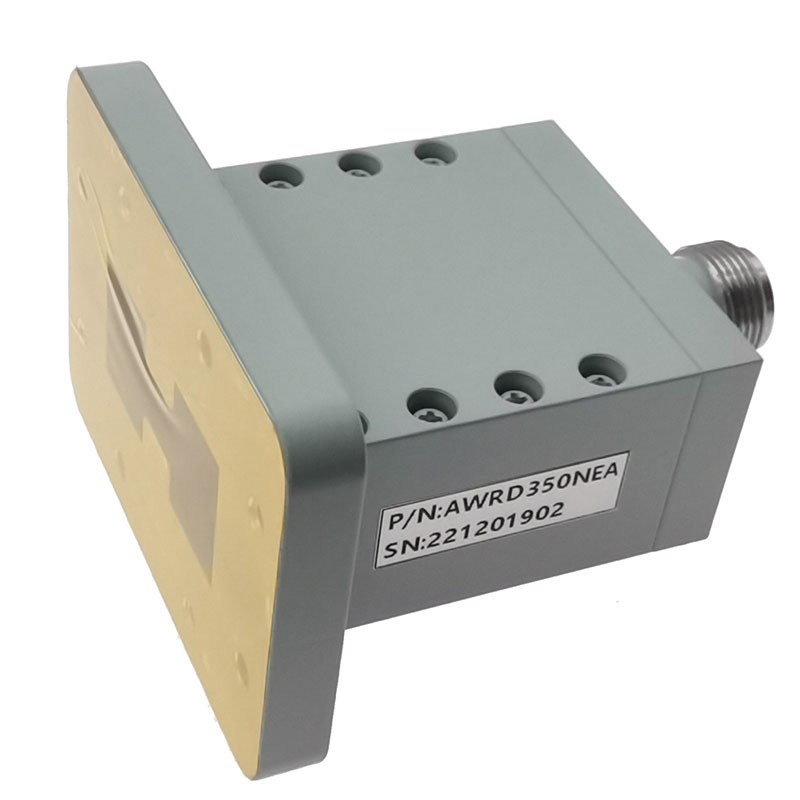

600 Watt Double Ridge WRD350 to N Female Transition
In addition to a broad line of standard power handling waveguide to coaxial adapters, RF ONE is also able to provide high power transitions which are built with custom airline connectors for optimized heat transfer.
AWRD350NEA from RF ONE is a 600 watts WRD350 to N Female Adapter.
- 1.3 max VSWR over full band 3.5-8.2 GHz
- High power handling from airline N type connector
- Ruggedized stainless steel coax body
- Competitive price, delivered with plots
- Available in custom flanges
