25 March 2025
Newsletter March 2025
RF ONE Monthly Newsletter
March 2025 • Issue 39

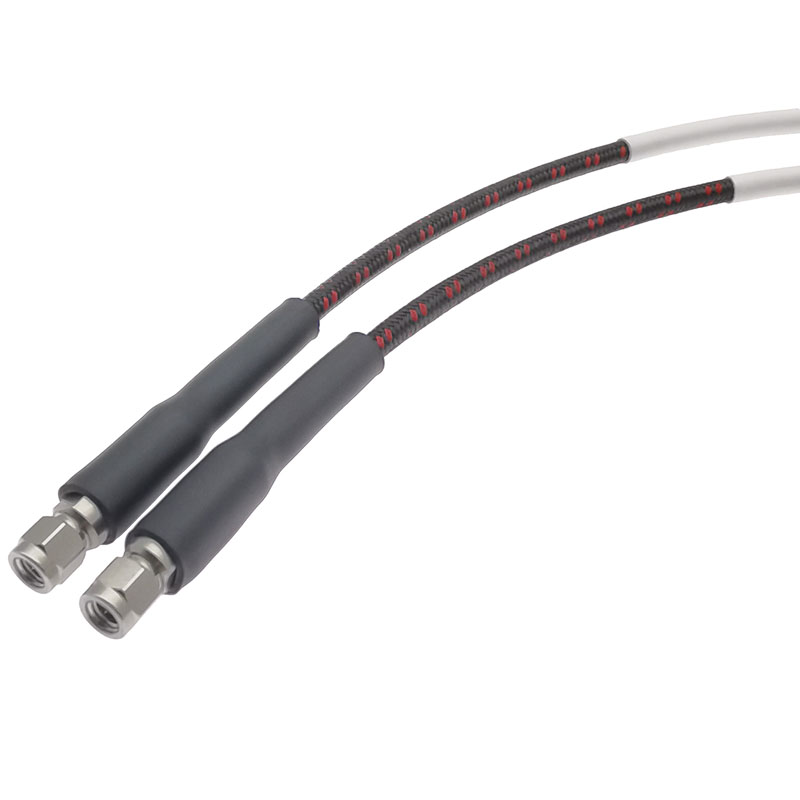

110 GHz 1.0mm Phase Matched Cable Assembly
PL140-A from RF ONE is 110 GHz flexible phase and amplitude stable cable reinforced with stainless steel and PTFE jacketed armor, which provide better durability and stability. This cable can also be matched in phase and delay in pairs or in groups for phase-sensitive applications.
- Excellent VSWR, 1.35 max through the bandwidth
- Superior phase and amplitude stability over flexing
- Phase matched +/- 2 ps to 110 GHz
- Custom lengths in 1 week delivery

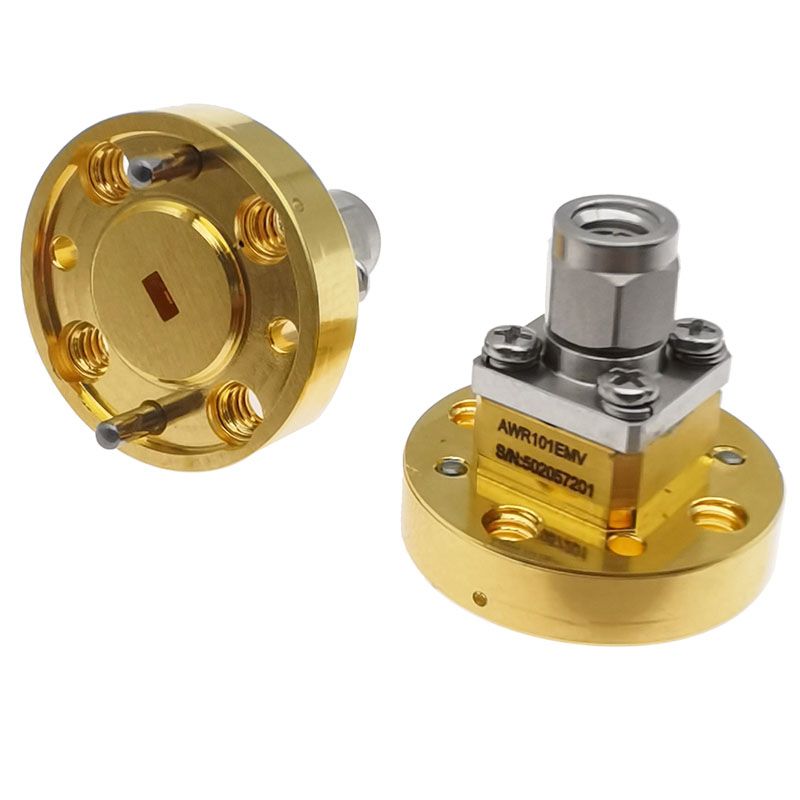

TVAC-safe Waveguide-to-coaxial Adapters
RF ONE offers a range of of high performance TVAC-safe Waveguide-to-coaxial adapters including the V band WR10 to 1.0mm units. These adapters are built from low outgassing materials and with vented holes.
- Built in gold plated copper or filmed aluminum
- Qualified by well-known industry leaders
- Low outgassing materials, with vented holes
- TVAC products also include coax couplers, waveguide terminations

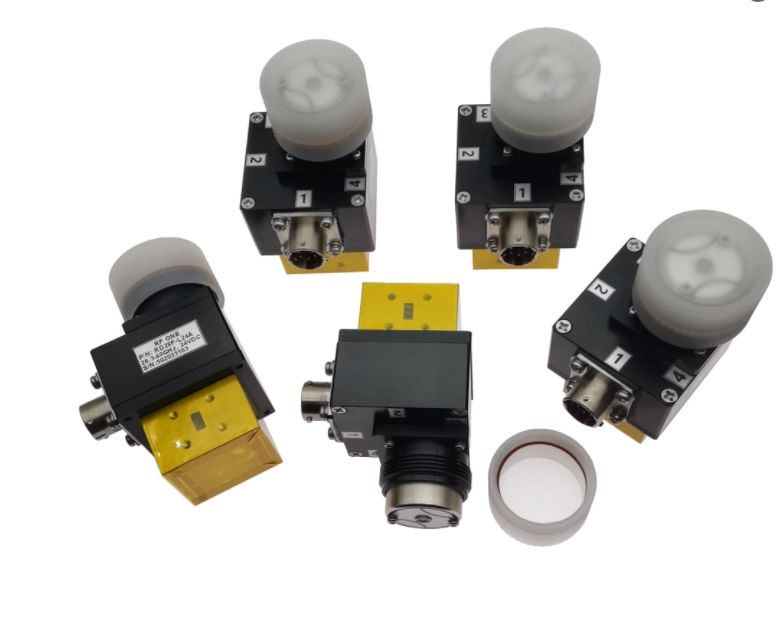

Waveguide Switches for Radar & Satellite
Waveguide switches are critical components used in microwave systems to redirect signals between different paths within a network. RF ONE offers a variety of waveguide switches from WR22 to WR340 and WRD180 to WRD750.
- Covering L,C, S band till Ka band
- Low Insertion Loss and High Isolation
- 100% low and high temperature test
- Flange-compatible designs:UG, CPR, or custom
