21 May 2025
Newsletter May 2025
RF ONE Monthly Newsletter
May 2025 • Issue 40

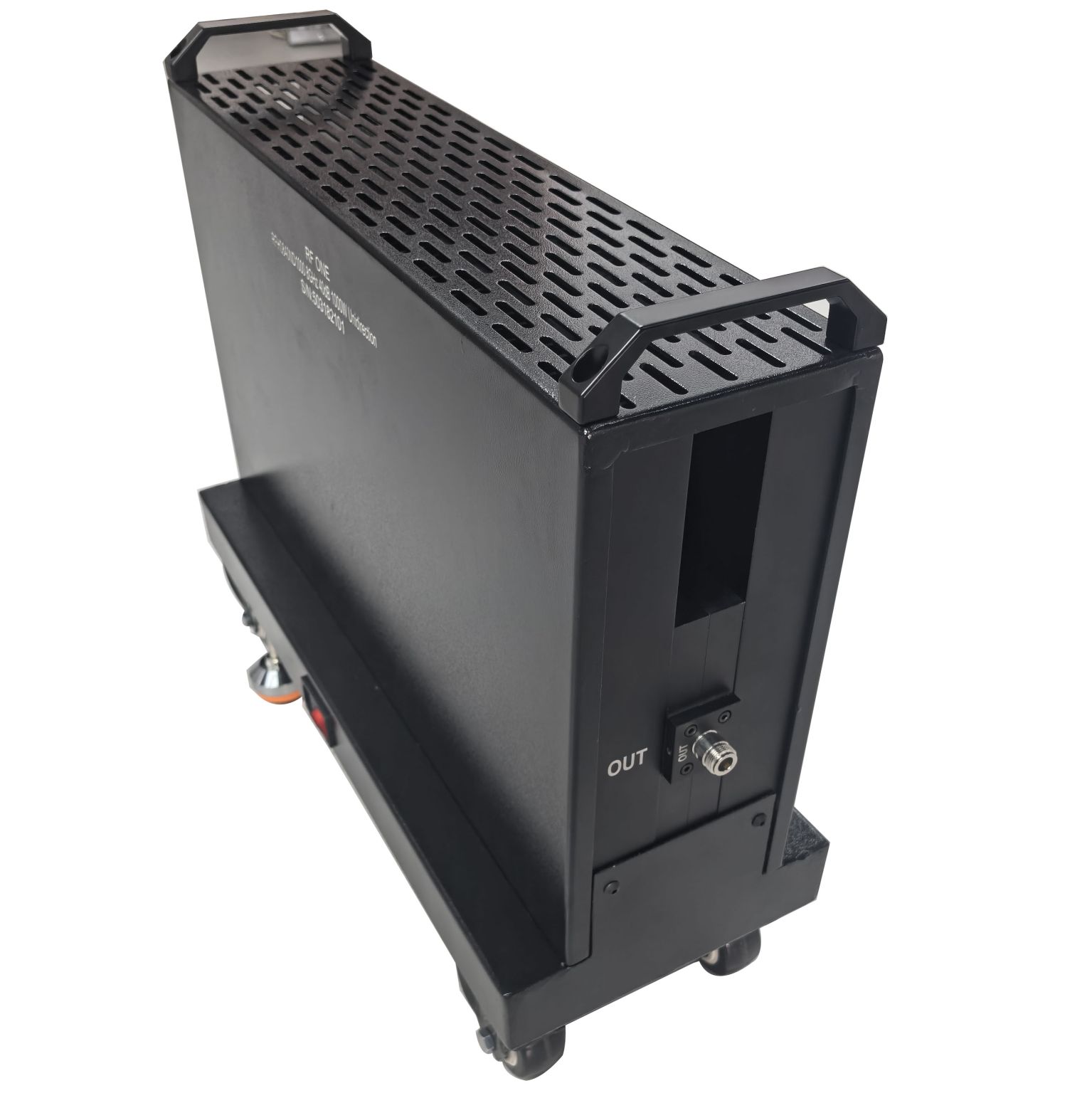

1000 Watts Fixed Attenuator up to 10 GHz
RF ONE has extended the frequency ranges for high power 1000W fixed attenuator from 6 GHz to 10 GHz. This 10 GHz 1000W fixed attenuator is now ready in 40dB, 50dB and 60dB are also available upon request.
- Operating to 10 GHz and 1000W CW power
- Excellent VSWR, max 1.5 to 10 GHz
- Robustly constructed, easy to use with wheels and handle
- Efficient and convenient fan cooling

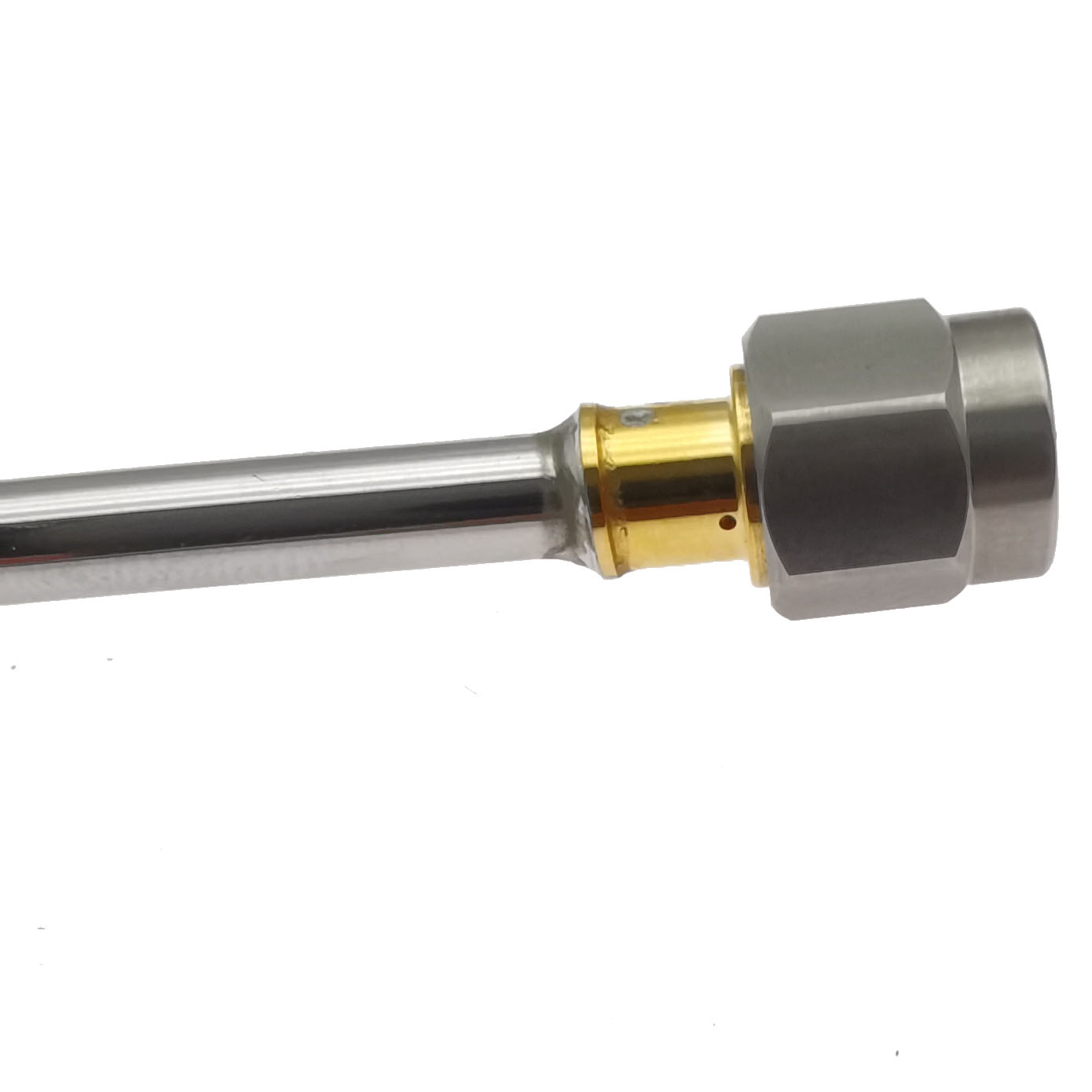

TVAC-safe Semi-rigid Cable Assembly
Besides the thermal vacuum flexible cable assemblies, semi-rigid cable assemblies from RF ONE can also be provided for TVAC use. These semi-rigid cable assemblies are built with vented holes on connectors.
- Available in 047, 085, 141 sizes up to 110 GHz
- Tight phase matching available in a pair or sets
- Lower loss, phase stable cable options
- Customized bending available

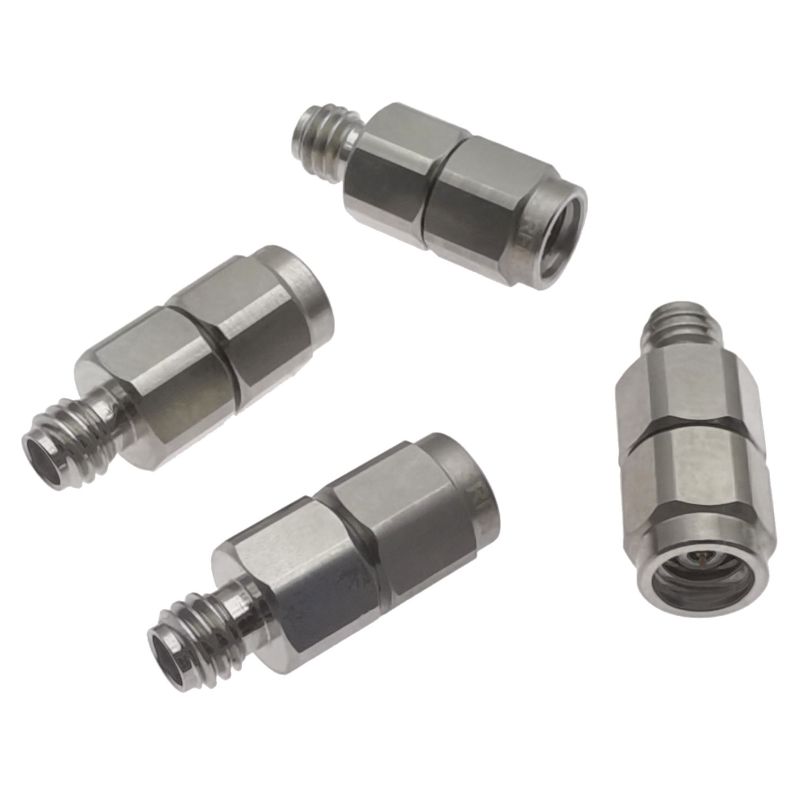

1.0mm Fixed Attenuators up to 110 GHz
RFHB1-XX from RF ONE is a 1.0mm fixed attenuator, operating from DC to 110 GHz. These 1.0mm fixed attenuators are commonly used in ultra-wideband millimeter-wave systems, which provide direct connection to the coax interface and eliminate the use of waveguide to coax adapters.
- Unmatched frequency to 110 GHz, 1.6 max VSWR
- Standard attenuations 3dB, 6dB, 10dB and 20dB
- Fully RF tested, delivered with plots
- 1-2 weeks lead time
