RF ONE Monthly Newsletter
May 2024 • Issue 32

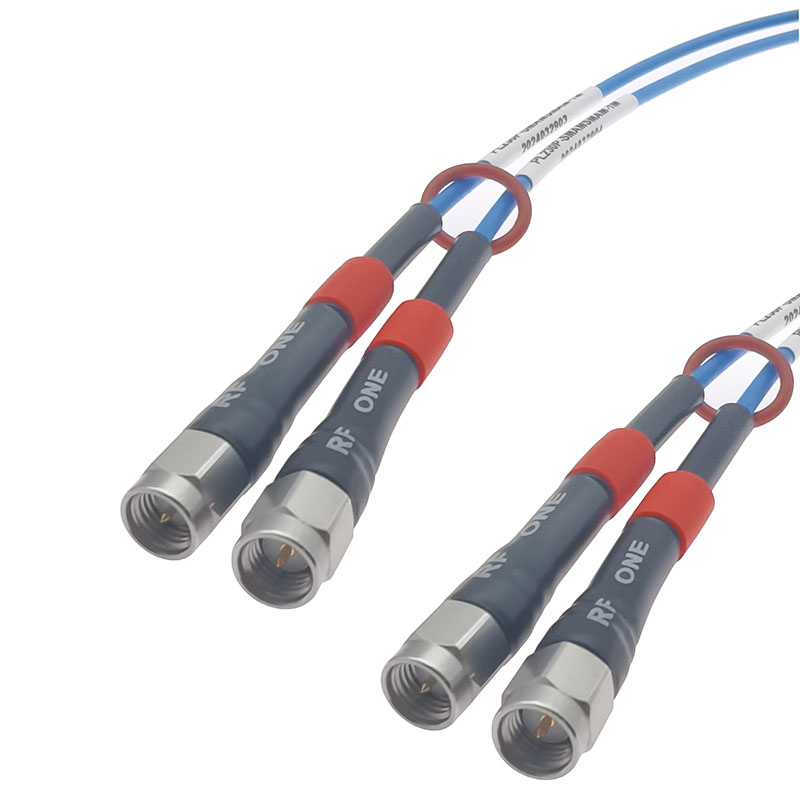

High Performance Phase Matched Cable Assembly
RF ONE offers microwave cable assemblies which can be matched in Phase, Delay, and Amplitude. These phase matched cables are critical to the performance of phase-sensitive systems, such as phased-array radars.
- Broad options of cable sizes & connectors
- Can be matched up to 110 GHz
- Tight phase window, +/- 4 degree to 18 GHz
- Matched available in pairs or in groups

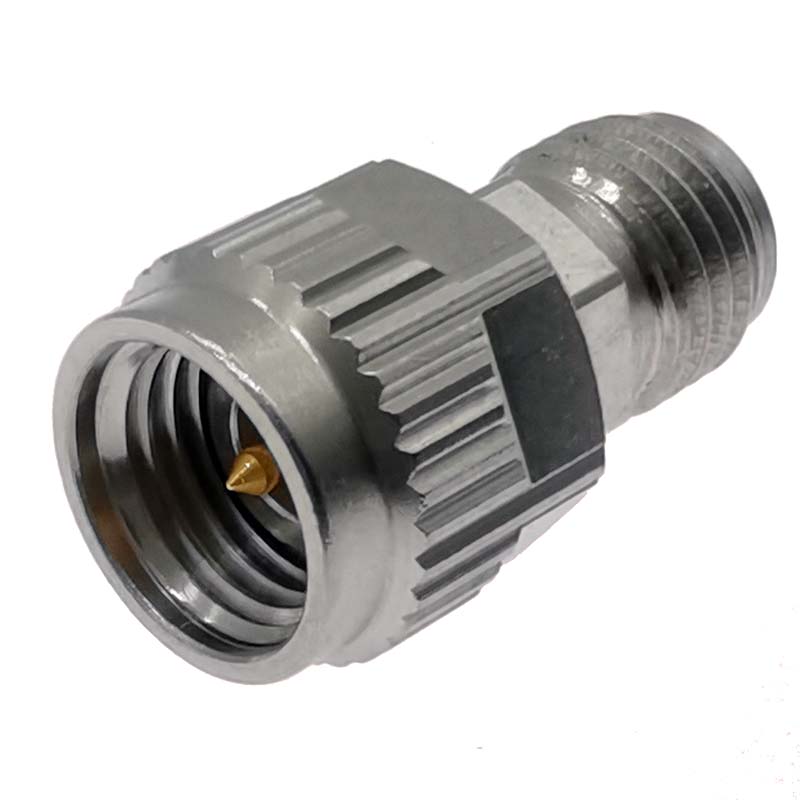

3.5mm Inner DC Block rated at 60 Voltage
We offer a comprehensive range of DC Blocks with SMA, N type, BNC, 2.92mm, 2.4mm and 1.85mm connectors. DB6034A from RF ONE is a 3.5mm inner DC block operating from 10MHz and to a maximum frequency of 34 GHz.
- Comes in 27GHz & 34GHz versions
- Extremely low loss, loss< 0.5dB
- Excellent VSWR, <1.3 to 34 GHz
- Compact package in durable housing

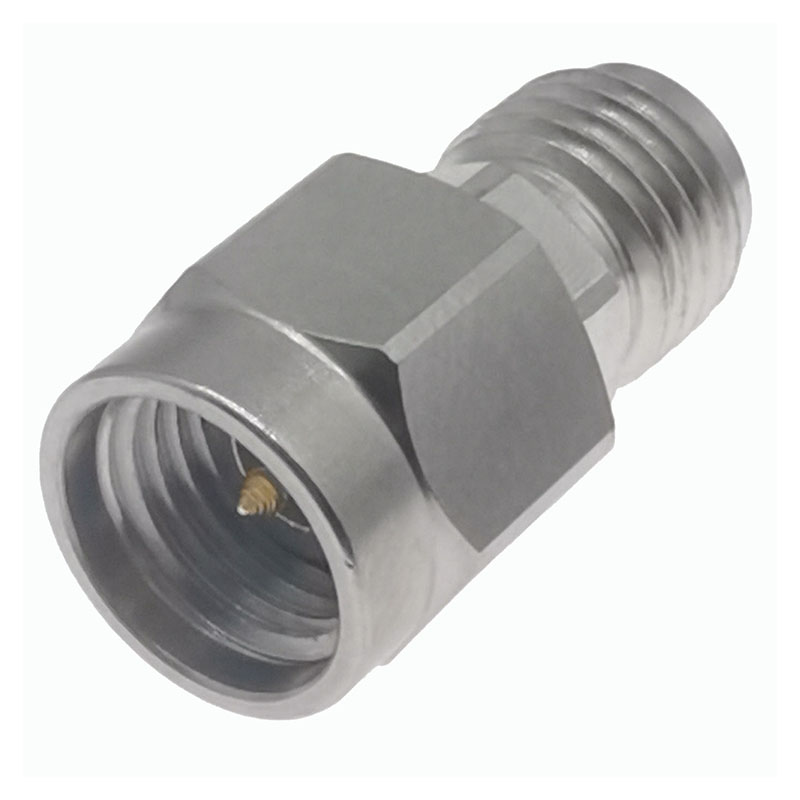

3.5mm 2W Attenuator from DC to 34GHz
To fill the gap between our 27 GHz and 40 GHz attenuator, RF ONE now also offers precision 3.5mm 2W attenuator operating from DC to 34GHz. This 3.5mm attenuator has wide selection of dB values from 1-40dB.
- 1.2 Max VSWR through DC to 34GHz
- Tight accuracy +/-0.5dB to 34GHz
- Small package in rugged stainless steel
- Short delivery within 2 weeks
