30 July 2024
Newsletter July 2024
RF ONE Monthly Newsletter
July 2024 • Issue 34

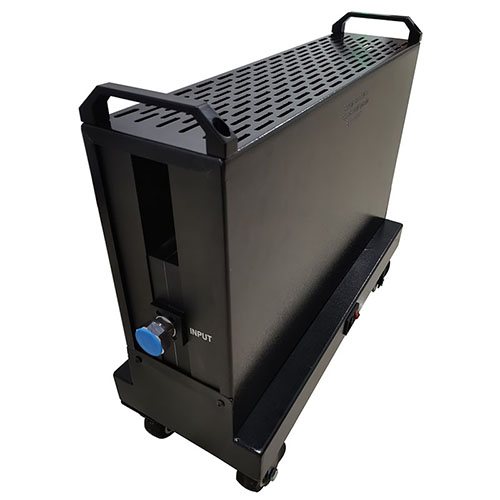

2000 Watts Fixed Attenuator up to 6GHz
RFH06XXDD2000 from RF ONE is 7/16 DIN coaxial fixed attenuator operating from DC to 6 GHz and rated at 2000 Watts avg power, 10kW peak power. This attenuator is reliable in power handling, robustly constructed, easy to use with wheels.
- Operating to 6GHz and 2000W CW power
- Excellent VSWR, typical 1.35 to 6 GHz
- Standard attenuations in 30,40, 50 & 60dB
- Efficient and convenient fan cooling

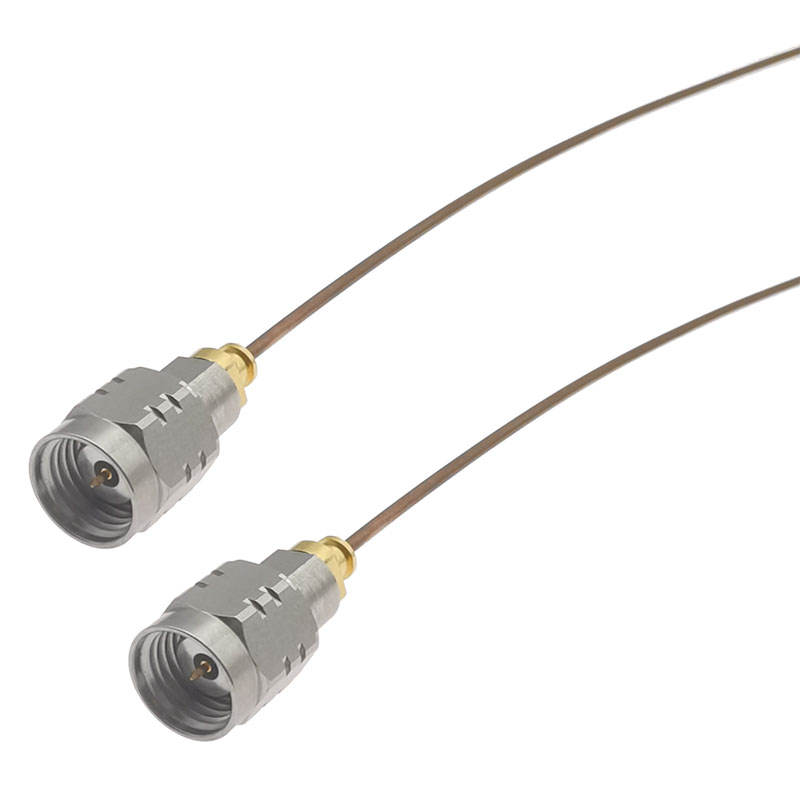

Semi-Rigid 047 Coax Cables up to 67GHz
SG047 from RF ONE are 50 Ohm 047 semi-rigid coax cables with microporous PTFE dielectric featuring lower loss and better thermal phase stability. This cable is ideal for high performance applications up to 67 GHz.
- 047 sized, can be formed with standard tooling
- Assemblies in options of 1.85, 2.4, 2.92mm & SMA
- Ideal for space and time saving installation
- Other semi-rigid 086, 141 cables available
Ultra-low Loss High Power Flexible Cable PL800
RF ONE offers a variety of phase stable low loss coax cables with diameter from 1.2mm to 12mm. The PL800 features exceptional low loss and high power 398 Watt to 18GHz. This cable is usually for applications where low loss, high power and phase stability are required.
- Ultra-low loss, typ 0.67dB/M @18GHz
- Phase stability <500ppm
- Ruggedization options available
- Phase match available within +/-4 degree
