Newsletter September 2022

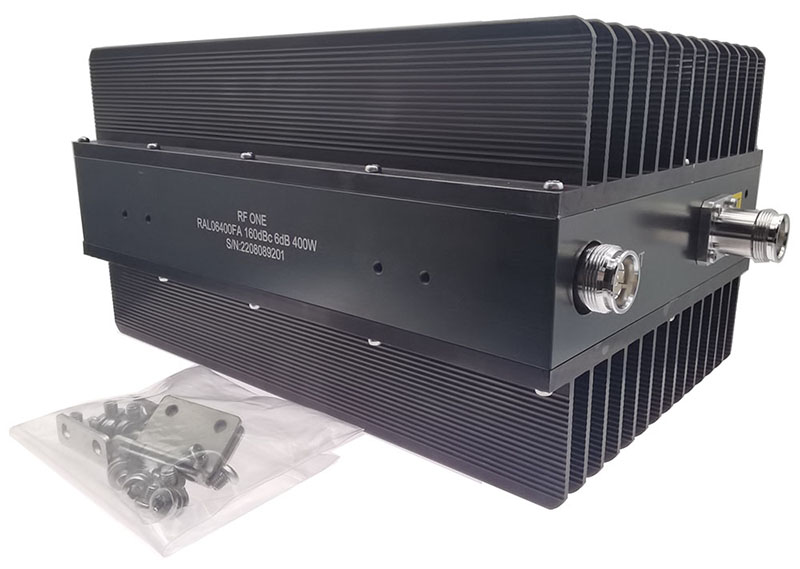

High Power 160dBc Low PIM Attenuator
RF ONE has released higher power 400 Watts low PIM attenuator covering 555MHz to 6000MHz, which has been introduced to meet the increased power level demand in current PIM test environment. It has extended our low PIM attenuator family from 25W to 400W avg power level.
- Wide band 400MHz to 6000MHz available
- Outstanding PIM performance, typical 165dBc
- 6dB to 40dB standard attenuation values
- 25W, 50W, 100W, 200W, 300W and 400W avg power options

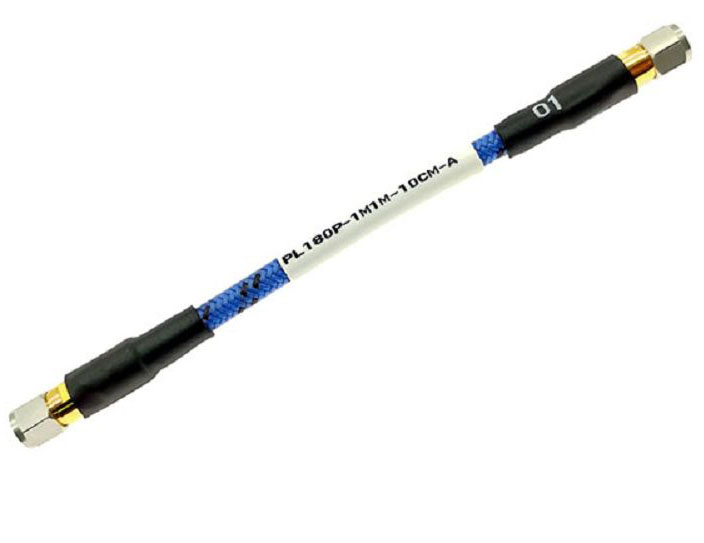

110GHz 1.0mm Armored Flexible Cable Assembly
PL180P from RF ONE is the 1.0mm 110GHz Flexible Precision Cable. These cables are available in custom lengths with 1.0mm male-to-male or 1.0mm male-to-female configurations. Multiple layers of ruggedization are provided for better durability and stability.
- VSWR Max 1.45 up to 110GHz
- Good mechanical phase stability vs flexing
- Custom lengths in 1 week delivery
- 100% RF Test, shipped with individual plots

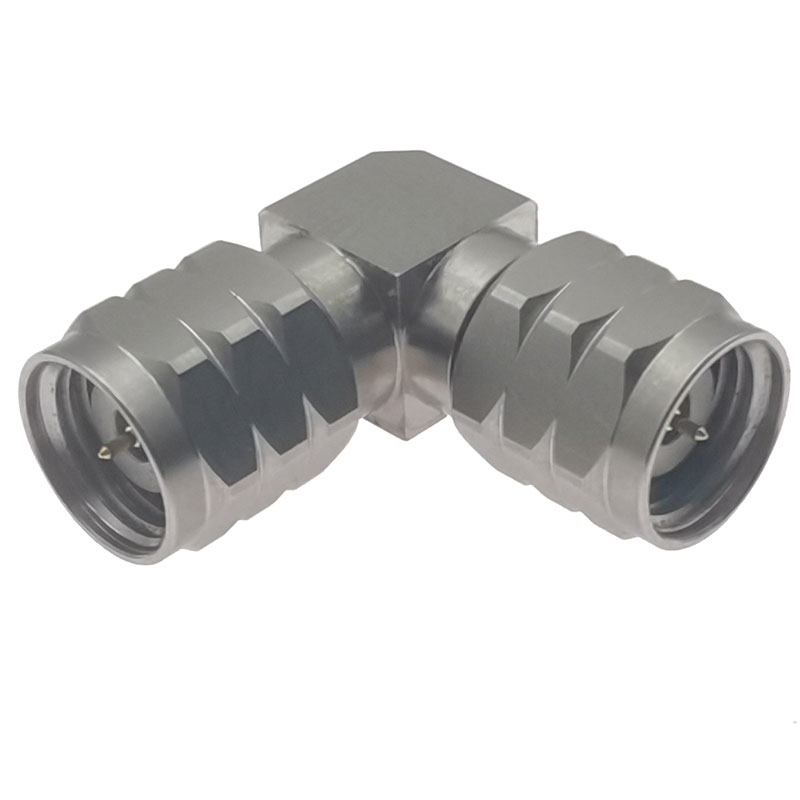

1.85mm in-series Right Angle Adpaters to 67GHz
Apart from the V type 1.85mm in-series straight adapters, now 1.85mm right angle adapters from RF ONE are also available, operating from DC to 67GHz. These RA adapters use mitered center conductor design to ensure reliable and durable performance.
- Features excellent VSWR, max 1.35, typ 1.20
- Built with ruggedized stainless-steel body
- Fast delivery, from stock or in 1week
- 2.92mm, 2.4mm right angle adapters available
