08 October 2024
Newsletter October 2024
RF ONE Monthly Newsletter
October 2024 • Issue 35

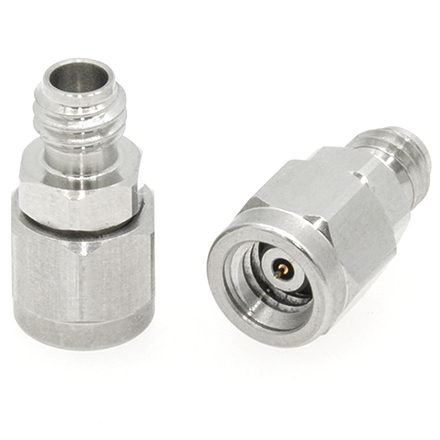

1.0mm In-Series Adapters up to 110 GHz
RF ONE offers a set of high-performance 1.0mm adapters, covering the frequency ranges from DC to 110GHz. These adapters feature extremely low VSWR and high repeatability and durability, ideal for test and measurement in the semiconductor markets.
- Excellent VSWR, 1.35 Max to 110GHz
- Built with ruggedized stainless-steel body
- Competitive price, delivered with plots
- Bulkhead and flange type also available
110 GHz PhaseRel Test Cable Assembly
RF ONE offers optimized 1.0mm test cable assembly up to 110GHz. These cables are available in custom lengths with 1.0mm male-to-male or 1.0mm male-to-female configurations. Multiple layers of ruggedization are provided for better durability and stability.
- VSWR Max 1.45 up to 110GHz
- Custom lengths in 1 week delivery
- Highly flexible and longer flex life
- Semi-rigid 110 GHz cables also available

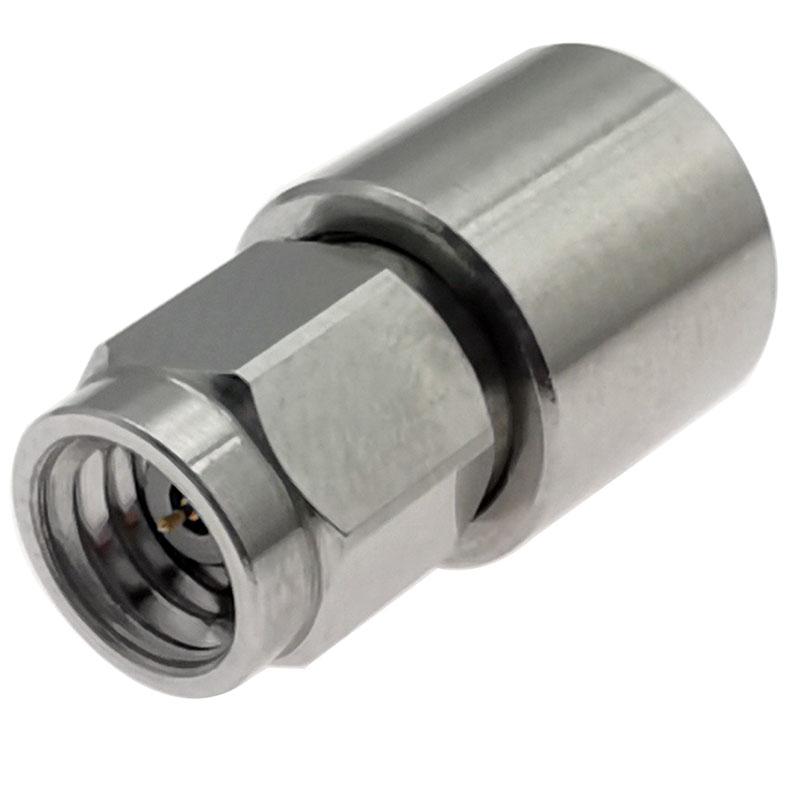

1.0mm Terminations rated at 1 Watts
RFT1M from RF ONE is the 1.0mm male termination operating from DC to 110 GHz, rated for 1 watts. These 1mm termination loads are ideal for precise RF measurements, self-driving vehicle radar and 5G applications.
- DC-110GHz, 1.6 Max VSWR
- Available in both female & male
- 100% RF Test, delivered with plots
- 1.0mm attenuators also available
