Low Pass Filters
Result: 50

Low pass filters are one of the most commonly used filters in any communication receiver. RF ONE offers a wide range of low pass filters with cut-off frequencies as low as 1 GHz up to as high as 21 GHz. We employ different technologies for different frequency bands in order to optimize performance, manufacturability and cost.

Show 20
Show 20
Show 40
Show 60
Show 80
 123
P/N Passband Frequency Insertion Loss Max VSWR Max Reject Frequency Rejection Min Power Input Max Connector Add to RFQ
LPF-D3GS1 DC-0.33 GHz 0.5 dB 1.3 0.64-3.0 GHz 60 dB 1 W SMA Add to RFQ
LPF-980MS1 DC-0.98 GHz 1.5 dB 1.3 1.2-4.2 GHz 30 dB 15 W SMA Add to RFQ
LPF-1GS1 DC-1.0 GHz 1.0 dB 1.3 1.3-4.2 GHz 70 dB 15 W SMA Add to RFQ
LPF-1D25GS1 DC-1.25 GHz 1.0 dB 1.3 1.52-4.7 GHz 60 dB 15 W SMA Add to RFQ
LPF-1D5GS1 DC-1.5 GHz 1.0 dB 1.3 1.8-5.3 GHz 60 dB 15 W SMA Add to RFQ
LPF-1D75GS1 DC-1.75 GHz 1.0 dB 1.3 2.1-5.8 GHz 60 dB 15 W SMA Add to RFQ
LPF-2GS1 DC-2.0 GHz 1.0 dB 1.3 2.65-7.4 GHz 60 dB 15 W SMA Add to RFQ
LPF-2GS2 DC-2.0 GHz 1.5 dB 1.3 2.38-7.0 GHz 60 dB 15 W SMA Add to RFQ
LPF-2D2GS1 DC-2.2 GHz 0.9 dB 1.3 2.62-7.5 GHz 60 dB 15 W SMA Add to RFQ
LPF-2D25GS1 DC-2.25 GHz 1.5 dB 1.3 2.65-7.4 GHz 60 dB 15 W SMA Add to RFQ
LPF-2D5GS1 DC-2.5 GHz 1.5 dB 1.3 2.95-7.7 GHz 60 dB 15 W SMA Add to RFQ
LPF-2D75GS1 DC-2.75 GHz 1.0 dB 1.3 3.17-8.5 GHz 60 dB 15 W SMA Add to RFQ
LPF-3GS1 DC-3.0 GHz 1.0 dB 1.3 3.52-10 GHz 60 dB 15 W SMA Add to RFQ
LPF-3D25GS1 DC-3.25 GHz 1.0 dB 1.3 3.74-10.5 GHz 60 dB 15 W SMA Add to RFQ
LPF-3D5GS1 DC-3.5 GHz 1.0 dB 1.3 4.05-11.5 GHz 60 dB 15 W SMA Add to RFQ
LPF-3D75GS1 DC-3.75 GHz 1.0 dB 1.3 4.25-11.8 GHz 60 dB 15 W SMA Add to RFQ
LPF-4GS1 DC-4.0 GHz 1.0 dB 1.3 4.5-12.3 GHz 60 dB 15 W SMA Add to RFQ
LPF-4D25GS1 DC-4.25 GHz 1.0 dB 1.3 4.77-12.8 GHz 60 dB 15 W SMA Add to RFQ
LPF-4D5GS1 DC-4.5 GHz 1.0 dB 1.3 5.1-13.7 GHz 60 dB 15 W SMA Add to RFQ
LPF-5GS1 DC-5.0 GHz 1.0 dB 1.3 5.58-15 GHz 60 dB 15 W SMA Add to RFQ
LPF-5D5GS1 DC-5.5 GHz 1.0 dB 1.3 6.07-15.1 GHz 60 dB 15 W SMA Add to RFQ
LPF-6GS1 DC-6.0 GHz 1.0 dB 1.3 6.7-15.5 GHz 60 dB 15 W SMA Add to RFQ
LPF-6D5GS1 DC-6.5 GHz 1.0 dB 1.3 7.27-15.3 GHz 60 dB 15 W SMA Add to RFQ
LPF-7GS1 DC-7.0 GHz 1.0 dB 1.3 7.77-15.5 GHz 50 dB 15 W SMA Add to RFQ
LPF-7D5GS1 DC-7.5 GHz 1.5 dB 1.4 8.3-15.8 GHz 50 dB 15 W SMA Add to RFQ

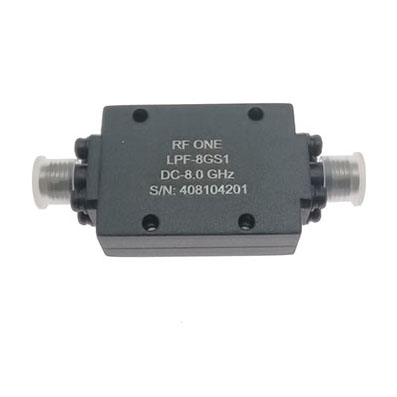

LPF-8GS1 DC-8.0 GHz 1.0 dB 1.4 8.8-16.2 GHz 50 dB 15 W SMA Add to RFQ
LPF-8D5GS1 DC-8.5 GHz 1.0 dB 1.4 9.3-17 GHz 50 dB 15 W SMA Add to RFQ
LPF-9GS1 DC-9.0 GHz 1.0 dB 1.4 9.8-17 GHz 50 dB 15 W SMA Add to RFQ
LPF-9D5GS1 DC-9.5 GHz 1.0 dB 1.4 10.3-18 GHz 50 dB 15 W SMA Add to RFQ
LPF-10GS1 DC-10 GHz 1.0 dB 1.4 10.9-18.5 GHz 50 dB 15 W SMA Add to RFQ
LPF-10D5GS1 DC-10.5 GHz 1.0 dB 1.4 11.65-18.5 GHz 50 dB 15 W SMA Add to RFQ

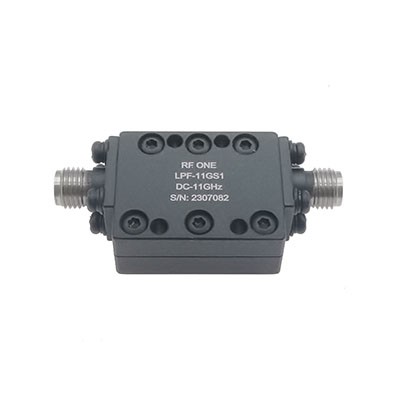

LPF-11GS1 DC-11 GHz 1.0 dB 1.5 12.1-19 GHz 50 dB 15 W SMA Add to RFQ
LPF-11D5GS1 DC-11.5 GHz 1.0 dB 1.5 12.6-20 GHz 50 dB 15 W SMA Add to RFQ

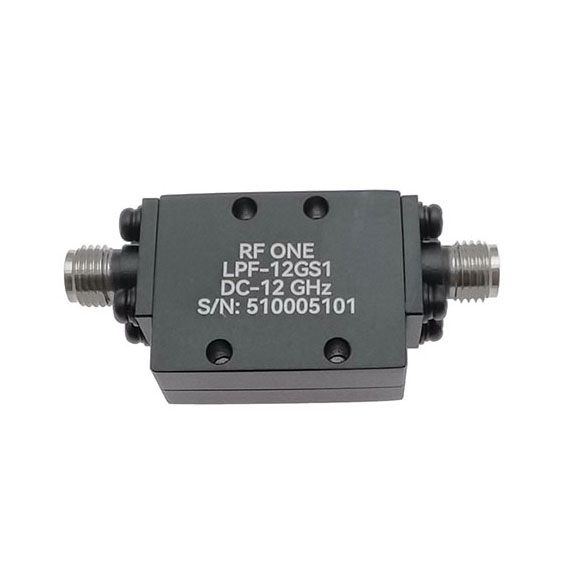

LPF-12GS1 DC-12 GHz 1.0 dB 1.5 13.1-20 GHz 50 dB 15 W SMA Add to RFQ

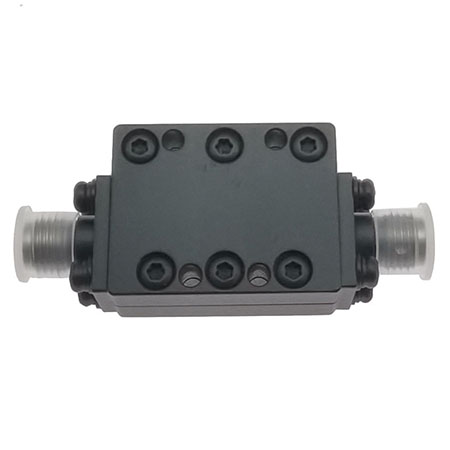

LPF-12D5GS1 DC-12.5 GHz 1.0 dB 1.5 13.7-20 GHz 50 dB 15 W SMA Add to RFQ
LPF-13GS1 DC-13 GHz 1.0 dB 1.5 14.1-21 GHz 50 dB 15 W SMA Add to RFQ
LPF-13D5GS1 DC-13.5 GHz 1.0 dB 1.5 14.7-21.3 GHz 50 dB 15 W SMA Add to RFQ

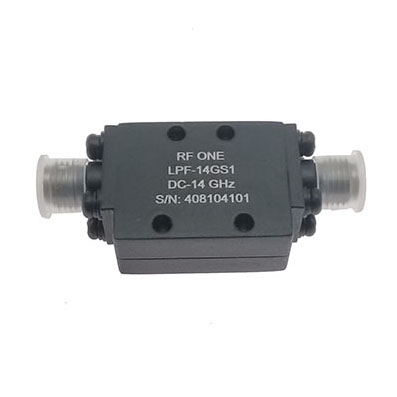

LPF-14GS1 DC-14 GHz 1.0 dB 1.5 15.2-21.7 GHz 50 dB 15 W SMA Add to RFQ
LPF-14D5GS1 DC-14.5 GHz 1.0 dB 1.5 15.7-22 GHz 50 dB 15 W SMA Add to RFQ

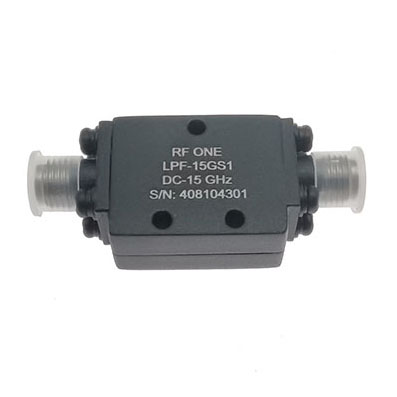

LPF-15GS1 DC-15 GHz 1.0 dB 1.5 16-22.3 GHz 50 dB 15 W SMA Add to RFQ
LPF-15D5GS1 DC-15.5 GHz 1.0 dB 1.5 16.5-22.5 GHz 50 dB 15 W SMA Add to RFQ
LPF-16GS1 DC-16 GHz 1.0 dB 1.5 17-22.8 GHz 50 dB 15 W SMA Add to RFQ
LPF-16D5GS1 DC-16.5 GHz 1.0 dB 1.5 17.5-23 GHz 50 dB 15 W SMA Add to RFQ
LPF-17GS1 DC-17 GHz 1.0 dB 1.6 18.1-24 GHz 50 dB 15 W SMA Add to RFQ
LPF-17D5GS1 DC-17.5 GHz 1.0 dB 1.6 18.6-25 GHz 50 dB 15 W SMA Add to RFQ
LPF-18GS1 DC-18 GHz 1.0 dB 1.6 19.1-26 GHz 50 dB 15 W SMA Add to RFQ
LPF-18D5GS1 DC-18.5 GHz 1.0 dB 1.6 19.6-26 GHz 50 dB 15 W SMA Add to RFQ
LPF-19GS1 DC-19 GHz 1.0 dB 1.6 20.1-26 GHz 50 dB 15 W SMA Add to RFQ
LPF-20GS1 DC-20 GHz 1.0 dB 1.6 21.2-27 GHz 50 dB 15 W SMA Add to RFQ
LPF-21GS1 DC-21 GHz 1.0 dB 1.6 22.2-27 GHz 50 dB 15 W SMA Add to RFQ
